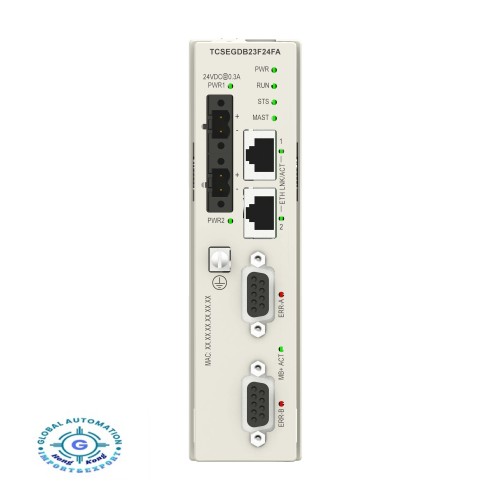

Schneider TCSEGDB23F24FA Modbus Plus proxy module - for Modicon M340 PLC,TCSEGDB23F24, Schneider
Schneider TCSEGDB23F24FA Modbus Plus proxy module - for Modicon M340 PLC
| range of product |
Modicon M340 automation platform
|
|
|---|---|---|
| product or component type |
Modbus Plus proxy module
|
|
| structure type |
Industrial bus
|
| communication gateway |
Ethernet Modbus TCP to Modbus Plus
|
|
|---|---|---|
| product compatibility |
M340 PLC
|
|
| physical interface |
10/100BASE-T
RS485 |
|
| method of access |
Token ring (Modbus Plus)
CSMA/CD (Modbus TCP) |
|
| transmission support medium |
Single twisted pair cable (Modbus Plus)
Category 5 shielded twisted pair (STP) (Modbus TCP) |
|
| transmission rate |
1 Mbit/s for bus length of 450 m per segment (Modbus Plus)
1 Mbit/s for bus length of 1800 m with 3 repeaters (Modbus Plus) 10...100 Mbit/s for bus length of 100 m without repeater (Modbus TCP) |
|
| number of slave |
128
|
|
| communication service |
Modbus Plus messaging
Configuration control Diagnostics Modbus Plus server (scanned by the PLC) FDR SNMP network management Read/write variables Peer cop dialogue Global Data Modbus TCP messaging |
|
| integrated connection type |
2 Ethernet TCP/IP with RJ45 (Modbus TCP)
2 Modbus with SUB-D 9 (Modbus Plus) |
|
| current consumption |
300 mA at 24 V DC external supply
|
|
| module format |
Standard
|
| ambient air temperature for operation |
0...60 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-45...85 °C
|
|
| relative humidity |
10...95 % without condensation
|
|
| operating altitude |
<= 2000 m
|
Schneider TCSEGDB23F24FA Modbus Plus proxy module - for Modicon M340 PLC,TCSEGDB23F24
- Brand: Schneider
- Product Code: TCSEGDB23F24FA
- Availability: 1000
