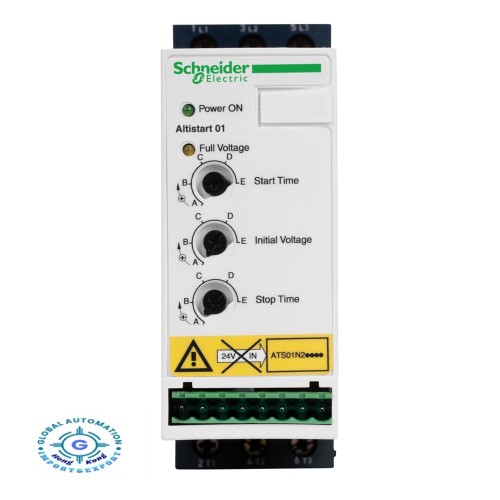

Altistart 01

Soft starter

Asynchronous motors

Simple machine

ATS01

3 phases

460...480 V - 10...10 %

5 hp 3 phases 460...480 V

9 A

AC-53B EN/IEC 60947-4-2

45 A at nominal load

Start with voltage ramp

4 W at full load and at end of starting
94 W in transient state

With heat sink

Integrated bypass

414...528 V

50...60 Hz - 5...5 %

47.5...63 Hz

<= power supply voltage

Built into the starter

1 s 100
10 s 10
5 s 20
Adjustable from 1 to 10 s

Adjustable from 1 to 10 s

30...80 % of starting torque of motor connected directly on the line supply

Logic LI1, LI2, BOOST stop, run and boost on start-up functions <= 8 mA 27 kOhm

24...40 V

Positive LI1, LI2, BOOST < 5 V and <= 0.2 mA > 13 V >= 0.5 mA

2 A DC-13
3 A AC-15

Open collector logic LO1 end of starting signal
Relay outputs R1A, R1C NO

24 V 6...30 V open collector logic

10 mA 6 V DC relay outputs

2 A 250 V AC inductive cos phi = 0.5 20 ms relay outputs
2 A 30 V DC inductive cos phi = 0.5 20 ms relay outputs

1 LED green starter powered up
1 LED yellow nominal voltage reached

1.9...2.5 N.m
0.5 N.m

4 mm screw clamp terminal rigid 1 1...10 mm² AWG 8 power circuit
Screw connector rigid 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal rigid 2 1...6 mm² AWG 10 power circuit
Screw connector rigid 2 0.5...1 mm² AWG 17 control circuit
Screw connector flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit
4 mm screw clamp terminal flexible without cable end 1 1.5...10 mm² AWG 8 power circuit
Screw connector flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal flexible with cable end 2 1...6 mm² AWG 10 power circuit
4 mm screw clamp terminal flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
Screw connector flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit

CE

Vertical +/- 10 degree

124 mm

45 mm

131 mm

0.42 kg

ATS01N2
