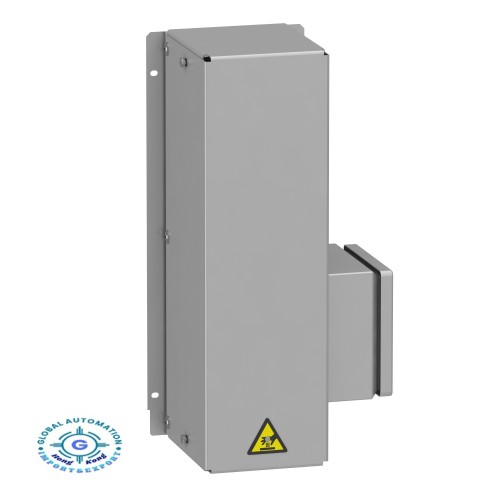

Schneider VW3A7735 Braking resistor - 8 ohms - 1.1 kW - IP20,VW3A7735, Schneider
Schneider VW3A7735 Braking resistor - 8 ohms - 1.1 kW - IP20
| product or component type |
Braking resistor
|
|---|
| range compatibility |
Altivar Machine ATV320
Altivar Machine ATV340 Altivar Process ATV900 |
|
|---|---|---|
| product compatibility |
Variable speed drive ATV930 wall mount 55 kW 380...480 V light
cycle
Variable speed drive ATV930 wall mount 15 kW 200...240 V light cycle Variable speed drive ATV950 wall mount 55 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 15 kW 200...240 V medium cycle Variable speed drive ATV340 45 kW 380...480 V light cycle Variable speed drive ATV320 11 kW 200...240 V |
|
| braking cycle |
Light cycle (heavy duty) : <= 0.8 s braking with 150 % braking
torque for a 40 s cycle
Light cycle (normal duty) : <= 0.8 s braking with 120 % braking torque for a 40 s cycle Medium cycle (normal duty) : <= 4 s braking with 135 % braking torque for a 40 s cycle Medium cycle (heavy duty) : <= 4 s braking with 165 % braking torque for a 40 s cycle |
|
| average power available |
1.1 kW at 50 °C
|
|
| ohmic value |
8 Ohm
|
|
| electrical connection |
Terminal, clamping capacity: <= 35 mm², AWG 3 for drive
Terminal, clamping capacity: <= 4 mm², AWG 10 for temperature control switch |
|
| protection type |
Thermal protection via drive or temperature control switch at
120 °C
|
|
| [Ue] rated operational voltage |
24 V DC
250 V AC |
|
| width |
190 mm
|
|
| height |
640 mm
|
|
| depth |
180 mm
|
|
| product weight |
4.5 kg
|
| ambient air temperature for operation |
0...50 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-25...70 °C
|
|
| IP degree of protection |
IP20
|
Schneider VW3A7735 Braking resistor - 8 ohms - 1.1 kW - IP20,VW3A7735
- Brand: Schneider
- Product Code: VW3A7735
- Availability: 1000
Tags: VW3A7735
