Schneider VW3A3204 Extended relay module - 3 relays,VW3A3204,

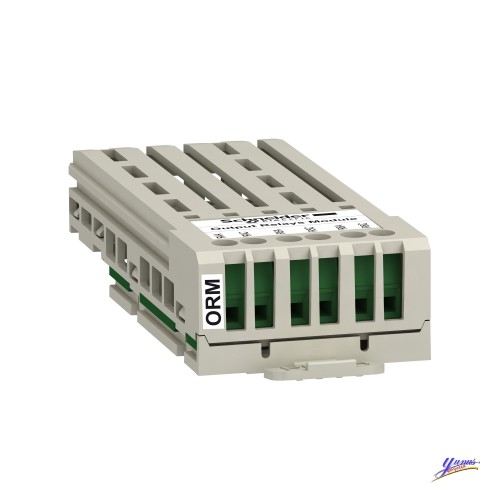

Schneider VW3A3204 Extended relay module - 3 relays
| product or component type |
Additional output module
|
|
|---|---|---|
| range compatibility |
Altivar Process ATV900
Altivar Machine ATV340 Altivar Easy 610 Altivar Process ATV600 |
|
| input/output type |
3 relay output(s)
|
|
| discrete output number |
3
|
|
| discrete output type |
(R4, R5, R6) relay normally open, sampling time: <= 1 ms
|
| electrical durability |
100000 cycles
|
|
|---|---|---|
| minimum switching current |
5 mA for 24 V DC
|
|
| maximum switching current |
2 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 5 ms
2 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 5 ms 5 A at 250 V AC on resistive load, cos phi = 1 and L/R = 5 ms 5 A at 30 V DC on resistive load, cos phi = 1 and L/R = 5 ms |
|
| electrical connection |
Screw terminal block, 1.5 mm² / AWG 16, 0.5 N.m
|
|
| product weight |
0.4 kg
|
Schneider VW3A3204 Extended relay module - 3 relays,VW3A3204
- Product Code: VW3A3204
- Availability: 1000
Tags: VW3A3204
