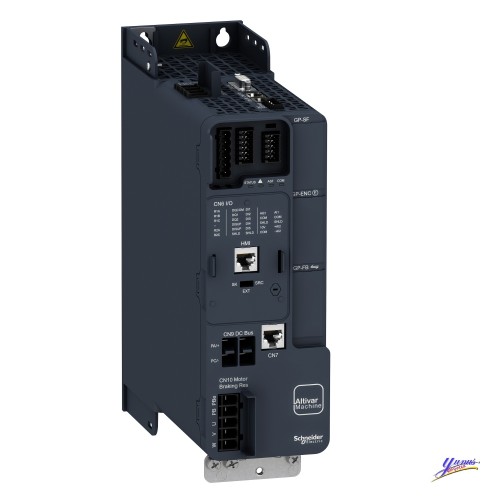

Altivar Machine ATV340

Variable speed drive

Machine

ATV340

Standard version

Synchronous motors
Asynchronous motors

Cabinet mount

Integrated with <= 20 m motor cable maxi conforming to EN/IEC 61800-3 category C3

IP20 conforming to IEC 61800-5-1
IP20 conforming to IEC 60529

Forced convection

50...60 Hz +/- 5 %

3 phases

380...480 V - 15...10 %

0.75 kW (heavy duty)
1.1 kW (normal duty)

1 hp (heavy duty)
1.5 hp (normal duty)

2.6 A at 480 V without line choke (heavy duty)
2.6 A at 380 V with external line choke (normal duty)
2.1 A at 480 V with external line choke (normal duty)
1.9 A at 380 V with external line choke (heavy duty)
1.6 A at 480 V with external line choke (heavy duty)
3.4 A at 380 V without line choke (heavy duty)

5 kA

2.2 kVA at 480 V (normal duty)
2.2 kVA at 480 V (heavy duty)

2.2 A at 4 kHz (heavy duty)
2.8 A at 4 kHz (normal duty)

3.3 A during 60 s (heavy duty)
3.1 A during 60 s (normal duty)
3.8 A during 2 s (normal duty)
4 A during 2 s (heavy duty)

Optimized torque mode
Constant torque standard
Variable torque standard

Permanent magnet motor
Reluctance motor

0.1...599 Hz

4 kHz

14...16 kHz with
2...16 kHz adjustable

STO (safe torque off) SIL 3
