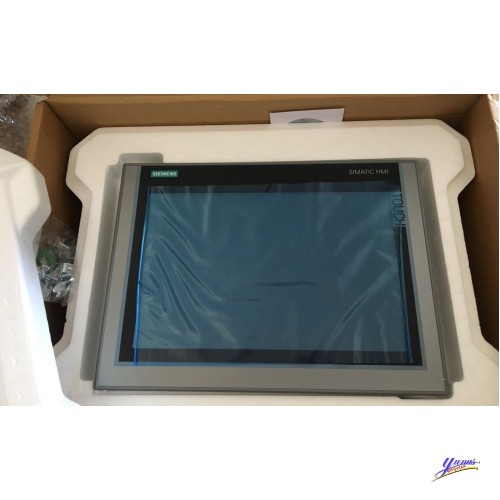

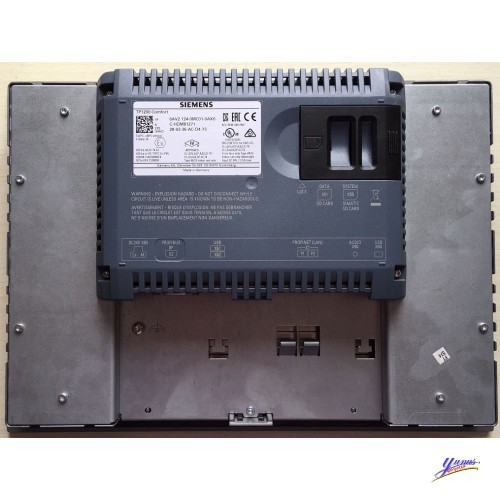

Siemens 6AV2124-0MC01-0AX0 TP1200 Comfort 12.1 inch TFT ,6AV2124-0MC0, Siemens

Siemens 6AV2124-0MC01-0AX0 TP1200 Comfort 12.1 inch TFT widescreen display, 16 Mio colors

Display 12.1 inch TFT widescreen display, 16 Mio colors

Resolution 1280 x 800 px

Control elements Touch screen

Membrane Keypad (28 keys),

34 function keys with LED

User memory 12 MB

Interfaces

2 x RJ 45 Ethernet for PROFINET

1 x RS 485/422 for PROFIBUS/MPI

2 x USB-host, 1 x USB- device

2 x SD card slot

Degree of protection IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout 310 x 221 mm (W x H) 434 x 268 mm (W x H)

Front panel 330 x 241 mm (W x H) 454 x 289 mm (W x H)

Device depth 63 mm 63 mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) or higher

Messages 4000

Message classes 32

Process pictures 500

Variables 2048

Vector graphics x

Bar graphics x

Curve diagrams f (t), f (x)

Recipes 300

Archiving 50

Visual Basic Scripts 100

Article No.: 6AV2124-0MC01-0AX0
