Sharp LQ104V1DG52 10.4" 640x480 Lcd Panel,LQ104V1DG52, Sharp

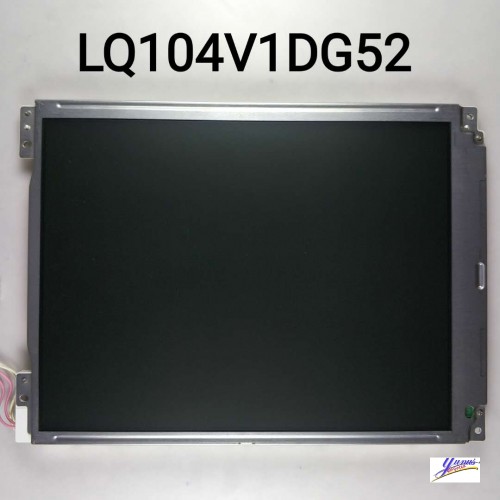

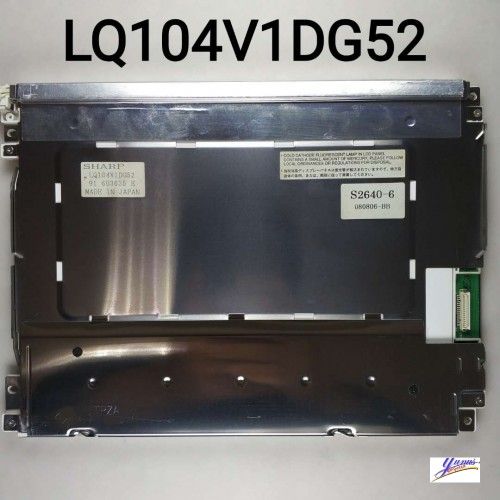

Sharp LQ104V1DG52 10.4" 640x480 Lcd Panel

Brand

style="margin: 0px; padding: 0px; color: rgb(51, 81, 127);">Sharp

Model

LQ104V1DG52

Diagonal Size

10.4 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

640(RGB)×480   [VGA]

Configuration

RGB Vertical Stripe

Active Area

211.2(H)×158.4(V) mm

Outline Dim.

246.5(H)×179.4(V) ×15.5(D) mm

Bezel Area

214.6(H)×162.4(V) mm

Treatment

Antiglare, Hard coating (3H), Antireflection

Luminance

350 cd/m² (Typ.)

Contrast Ratio

300:1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

10/25 (Typ.)(Tr/Td)

Viewing Angle

70/70/40/70 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

262K

Light Source

CCFL  [2 pcs] , 50K hours , W/O Driver

Weight

620g (Max.)

Designed For

style="margin: 0px; padding: 0px;">

Frame Rate

60Hz

Touch Panel

Without

Interface Type

31 pins   Parallel RGB (1 ch, 6-bit) , Connector

Power Supply

3.3/5.0V (Typ.)

Environment

Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -30 ~ 70 °C
