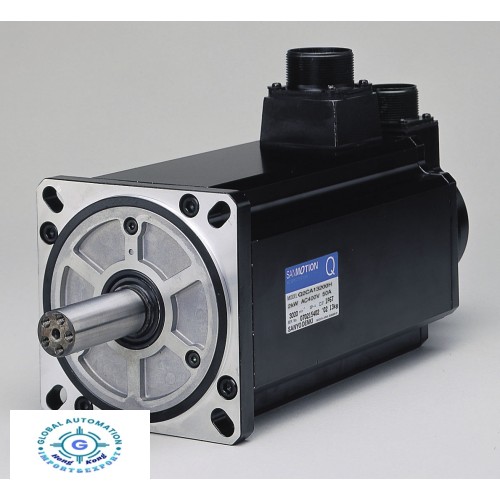

Sanyo Demki R2AA18350DCH00M AC Servo Motor 3.5Kw 4000Rpm

  Model No.

R2AA18350DCH00M

Motor classification

Rotary (Medium inertia)

Motor flange size[mm]

180

Rated output[kW]

3.5

Rated speed [min-1]

2000

Max. speed [min-1]

4000

Rated torque [N·m]

17

Continuous stall torque [N·m]

22.0

Peak stall torque [N·m]

60

Rotor inertia [×10-4kg·m2 (GD2/4)]

40

Encoder type

Single-turn absolute

Encoder Resolution [P/R]

17-bit

Output shaft

With key

Connection

Canon plug

Oil seal

Yes

Protection rating

IP65

Brake Type

Holding brake

Safety functions

No

Operating temperature range

0～40℃

Operating humidity range

90% max. (non-condensing)
