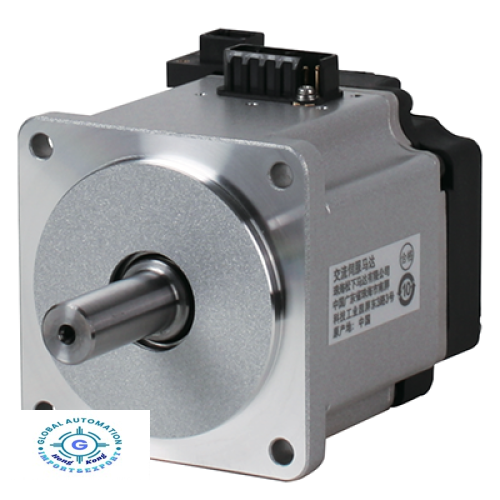

Panasonic MINAS A5 Family MSME011G1B Servo Motor 100V 100W

Spec Detail

ItemSpecifications
Part NumberMSME011G1B
DetailsLow inertia, Connector type, IP67
Family NameMINAS A5
SeriesMSME Series
TypeLow inertia
EnclosureIP67
About EnclosureExcept rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
Environmental ConditionsFor more details, please refer to the instruction manual.
Flange sq. dimension38 mm sq.
Flange sq. dimension (Unit:mm)38
Motor lead-out configurationConnector
Motor encoder connectorConnector
Power supply capacity (kVA)0.4
Voltage specifications100 V
Rated output100 W
Rated current (A (rms))1.6
Holding brakewith
Mass (kg)0.66
Oil sealwithout
ShaftRound
Rated torque (N ⋅ m)0.32
Momentary Max. peak torque (N ⋅ m)0.95
Max. current (A (o-p))6.9
Regenerative brake frequency (times/min)Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4280
About regenerative brake frequencyPlease refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)3000
Rated rotational Max. speed (r/min)6000
Moment of inertia of rotor ( x10-4 kg ⋅ m²)0.054
Recommended moment of inertia ratio of the load and the rotor30 times or less
About recommended moment of inertia ratio of the load and the rotorPlease refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications20-bit Incremental system
Rotary encoder: Resolution1048576


Brake specifications

ItemSpecifications
Static friction torque (N ⋅ m)0.29 or more
Engaging time (ms)35 or less
Releasing time (ms)20 or less
Exciting current (DC) (A)0.3
Releasing voltage (DC) (V)1 or more
Exciting voltage (DC) (V)24 ± 1.2
About brake specificationsThis brake will be released when it is energized.
Do not use this for braking the motor in motion.
Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4.


Permissible load

ItemSpecifications
During assembly: Radial load P-direction (N)147
During assembly: Thrust load A-direction (N)88
During assembly: Thrust load B-direction (N)117.6
During operation: Radial load P-direction (N)68.6
During operation: Thrust load A, B-direction (N)58.8
About permissible loadFor details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".
