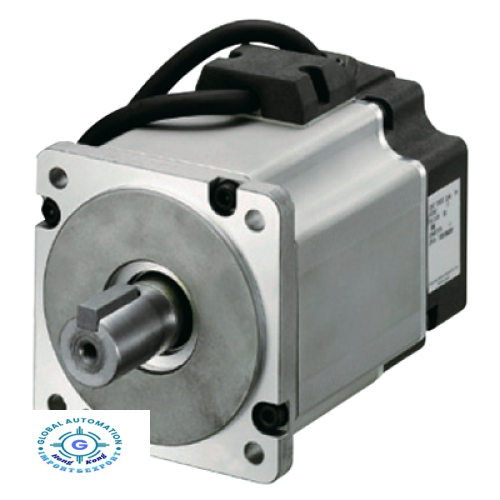

Panasonic MINAS A5 Family MHMD042S1S Servo Motor 200V 400W

Spec Detail

ItemSpecifications
Part NumberMHMD042S1S
DetailsHigh inertia, Lead wire type, IP65
Family NameMINAS A5
SeriesMHMD Series
TypeHigh inertia
EnclosureIP65
About EnclosureExcept rotating portion of output shaft and leadwire end.
Environmental ConditionsFor more details, please refer to the instruction manual.
Flange sq. dimension60 mm sq.
Flange sq. dimension (Unit:mm)60
Motor lead-out configurationLead wire
Motor encoder connectorLead wire
Power supply capacity (kVA)0.9
Voltage specifications200 V
Rated output400 W
Rated current (A (rms))2.6
Holding brakewithout
Mass (kg)1.4
Oil sealwithout
ShaftKey-way, center tap
Rated torque (N ⋅ m)1.3
Momentary Max. peak torque (N ⋅ m)3.8
Max. current (A (o-p))11.0
Regenerative brake frequency (times/min)Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequencyPlease refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)3000
Rated rotational Max. speed (r/min)5000
Moment of inertia of rotor ( x10-4 kg ⋅ m²)0.67
Recommended moment of inertia ratio of the load and the rotor30 times or less
About recommended moment of inertia ratio of the load and the rotorPlease refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications17-bit Absolute/Incremental system
NoticeWhen using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution131072


Permissible load

ItemSpecifications
During assembly: Radial load P-direction (N)392
During assembly: Thrust load A-direction (N)147
During assembly: Thrust load B-direction (N)196
During operation: Radial load P-direction (N)245
During operation: Thrust load A, B-direction (N)98
About permissible loadFor details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".
