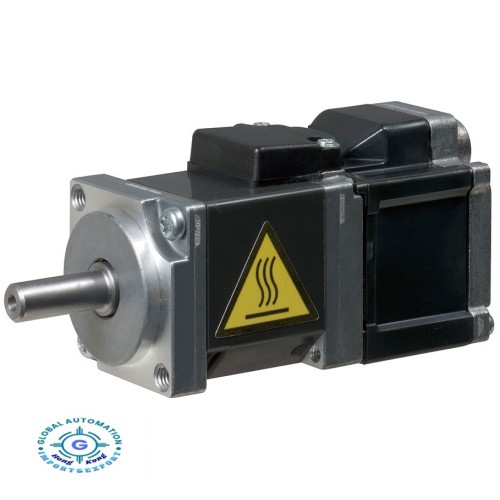

Mitsubishi HG-AK0136B Servo Motor
TECHNICAL INFORMATION
SERVO MOTOR
| Type | HG-AK |
| Rated Capacity (kW) | 0,001 |
| Rated Torque (Nm) | 0,032 |
| Maximum Torque (Nm) | 0,095 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Inertia (kg*cm2) | 0,0042 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP55 |
| Power Supply (V) | 48/24 |
| Current Type | DC |
| Encoder Type | ABSOLUTE/INCREMENTAL |
| Encoder Resolution (p/rev) | 262144 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 25 |
| Height (mm) | 30 |
| Depth (mm) | 102 |
| Weight (kg) | 0,22 |
ADDITIONAL INFORMATION
ORDER CODES
| European Order Code | 286738 |
| Global Order Code | 0JB051 |
CLASSIFICATION DATA
| Product hierarchy | IAK30299 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.242 KG |
| Volume | 0 CDM |
| Length | 0 |
| Width | 0 |
| Height | 0 |
COMMODITY / IMPORT CODE
| Commodity Code | 85011093 |
| Country of Origin | JP |
LIFE CYCLE
| Predecessor | 148440 |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi HG-AK0136B Servo Motor,HG-AK0136B
- Brand: Mitsubishi
- Product Code: HG-AK0136B
- Availability: 1000
