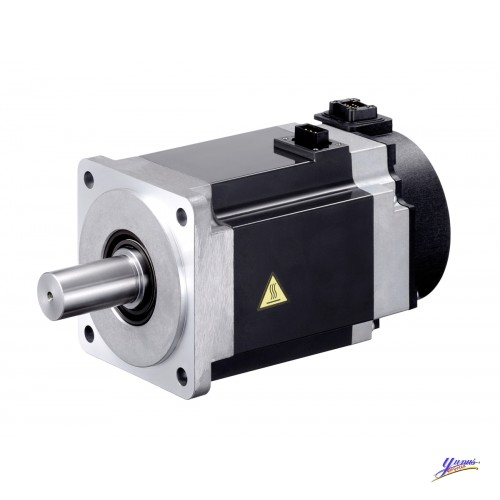

Mitsubishi HF-KN73BJK Servo Motor
SERVO MOTOR
| Type | HF-KN |
| Rated Torque (Nm) | 2,4 |
| Maximum Torque (Nm) | 7,2 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4500 |
| Inertia (kg*cm2) | 1,63 |
| Brake | YES |
| Shaft Type | KEYWAY |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | ABSOLUTE/INCREMENTAL |
| Encoder Resolution (p/rev) | 131072 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 80 |
| Height (mm) | 80 |
| Depth (mm) | 166,5 |
| Weight (kg) | 4,1 |
ORDER CODES
| European Order Code | 253951 |
| Global Order Code | 0HZ991-00100B |
CLASSIFICATION DATA
| Product hierarchy | IAK30219 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Discontinued Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 3.807 KG |
| Volume | 4.96 CDM |
| Length | 31 CM |
| Width | 10 CM |
| Height | 16 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85015100 |
| Country of Origin | JP |
LIFE CYCLE
| Predecessor | 213090 HF-KE73BKW1* 750W 3000RPM |
| Discontinued (EOL) | 05.01.2015 |
| Last Time Buy (LTB) | 31.12.2015 |
| End of Service (EOS) | 31.12.2022 |
| Successor | 282638 HG-KN73BJK |
| Successor Information | SYSTEM CHANGE REQUIRED |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi HF-KN73BJK Servo Motor,HF-KN73BJK
- Brand: Mitsubishi
- Product Code: HF-KN73BJK
- Availability: 1000
