Mitsubishi HC-UFS43 Servo Motor,HC-UFS43, Mitsubishi

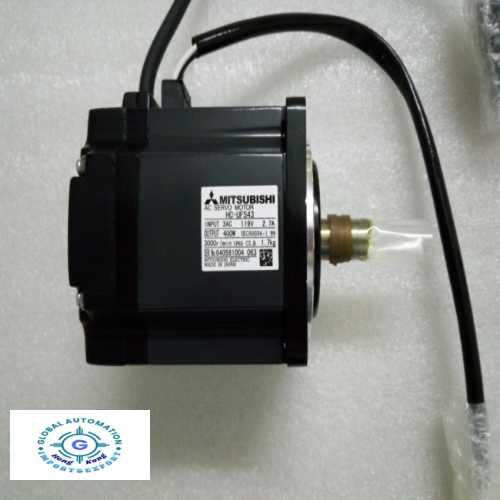

Mitsubishi HC-UFS43 Servo Motor
SERVO MOTOR
| Type | HC-UFS |
| Rated Torque (Nm) | 1,3 |
| Maximum Torque (Nm) | 3,8 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4500 |
| Inertia (kg*cm2) | 0,365 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Resolution (p/rev) | 131072 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 80 |
| Height (mm) | 95 |
| Depth (mm) | 122 |
| Weight (kg) | 1,7 |
ORDER CODES
| European Order Code | 142936 |
| Global Order Code | 0HG991-0010PD |
CLASSIFICATION DATA
| Product hierarchy | IAK30207 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Discontinued Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 1 KG |
| Volume | 4.8 CDM |
| Length | 30 CM |
| Width | 10 CM |
| Height | 16 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85015100 |
| Country of Origin | JP |
LIFE CYCLE
| Discontinued (EOL) | 07.11.2013 |
| Last Time Buy (LTB) | 31.08.2015 |
| End of Service (EOS) | 31.08.2022 |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
