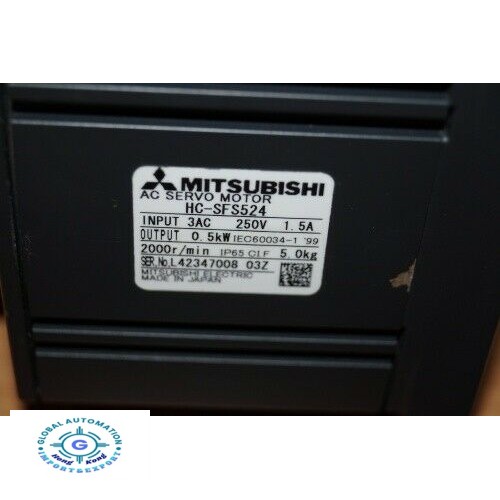

Mitsubishi HC-SFS524 Servo Motor,HC-SFS524, Mitsubishi
Mitsubishi HC-SFS524 Servo Motor
TECHNICAL INFORMATION
SERVO MOTOR
| Type | HC-SFS |
| Rated Torque (Nm) | 2,39 |
| Maximum Torque (Nm) | 7,16 |
| Rated Speed (rpm) | 2000 |
| Maximum Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 6,6 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP65 |
| Power Supply (V) | 400 |
| Current Type | AC |
| Encoder Resolution (p/rev) | 131072 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 130 |
| Height (mm) | 130 |
| Depth (mm) | 120 |
| Weight (kg) | 5 |
ADDITIONAL INFORMATION
ORDER CODES
| European Order Code | 151551 |
| Global Order Code | 0HG241001 |
CLASSIFICATION DATA
| Product hierarchy | IAK30205 |
| Class Description | FA-Servo-Motion: Servo Motor |
| External Material Group | Discontinued Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 5 KG |
| Volume | 12.903 CDM |
| Length | 33 CM |
| Width | 17 CM |
| Height | 23 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85015100 |
| Country of Origin | JP |
LIFE CYCLE
| Discontinued (EOL) | 07.11.2013 |
| Last Time Buy (LTB) | 31.08.2015 |
| End of Service (EOS) | 31.08.2022 |
| Successor | 261431 HG-SR524 |
| Successor Information | SYSTEM CHANGE REQUIRED |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi HC-SFS524 Servo Motor,HC-SFS524
- Brand: Mitsubishi
- Product Code: HC-SFS524
- Availability: 1000
