• Mitsubishi HC-SFS1524 Servo Motor,HC-SFS1524

Mitsubishi HC-SFS1524 Servo Motor,HC-SFS1524, Mitsubishi

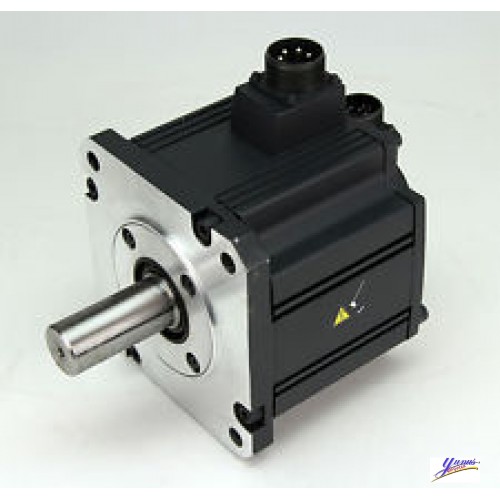

Mitsubishi HC-SFS1524 Servo Motor

  SERVO MOTOR
Type HC-SFS
Rated Torque (Nm) 7,16
Maximum Torque (Nm) 21,6
Rated Speed (rpm) 2000
Maximum Speed (rpm) 3000
Inertia (kg*cm2) 20
Brake NO
Shaft Type STRAIGHT SHAFT
Protection Class IP65
Power Supply (V) 400
Current Type AC
Encoder Resolution (p/rev) 131072
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 130
Height (mm) 130
Depth (mm) 170
Weight (kg) 9
ORDER CODES
European Order Code 151555
Global Order Code 0HG991-0010PL
CLASSIFICATION DATA
Product hierarchy IAK30205
Class Description FA-Servo-Motion: Servo Motor
External Material Group Discontinued Material
AVAILABILITY
Logistic Class C
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 9.825  KG
Volume 11.765  CDM
Length 31 CM
Width 16,5 CM
Height 23 CM
COMMODITY / IMPORT CODE
Commodity Code 85015220
Country of Origin JP
LIFE CYCLE
Discontinued (EOL) 07.11.2013
Last Time Buy (LTB) 31.08.2015
End of Service (EOS) 31.08.2022
Successor 261433  HG-SR1524
Successor Information SYSTEM CHANGE REQUIRED
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO

Write a review

Please login or register to review

Mitsubishi HC-SFS1524 Servo Motor,HC-SFS1524

  • Brand: Mitsubishi
  • Product Code: HC-SFS1524
  • Availability: 1000

Tags: Mitsubishi HC-SFS1524 Servo Motor
