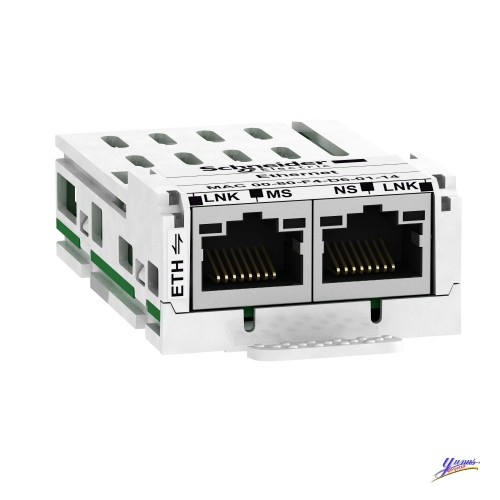

Schneider VW3A3616 Ethernet TCP/IP communication module

Main
range of product
Altivar
product or component type
Communication module

Complementary
communication port protocol
Modbus TCP
Ethernet/IP
electrical connection
1 connector RJ45 Ethernet/IP
1 connector RJ45 Modbus TCP
transmission rate
10/100 Mbps
addressing
IP addressing manual, BOOTP or DHCP
exchange mode
Half duplex and full duplex
communication service
Up to 8 connections (includes connections of Modbus TCP/Ethernet IP) for Ethernet IP/Modbus TCP
FDR Agent for Ethernet IP/Modbus TCP
Read holding registers (03), 63 words max for Modbus TCP
Read input registers (04), 63 words max for Modbus TCP
Write single register (06) for Modbus TCP
Write multiple registers (16), 63 words max for Modbus TCP
Read/write multiple registers (23) for Modbus TCP
Read device identification (43) for Modbus TCP
Diagnostics (08) for Modbus TCP
I/O scanner : read/write, 6 words maximum for Modbus TCP
Communication monitoring for Modbus TCP
SNMP agent for Ethernet IP
Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile for Ethernet IP
Fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) for Ethernet IP
web server
Embedded HTTP server
web services
Security
Drive monitor
Message statistics
Drive parameters
Ethernet/IP setup
Ethernet statistics
Ethernet/IP scanner setup
display type
1 LED MS (Module Status)
1 LED NS (Network Status)
1 LED Ethernet port activity
1 LED Modbus TCP port activity
product weight
0.3 kg
