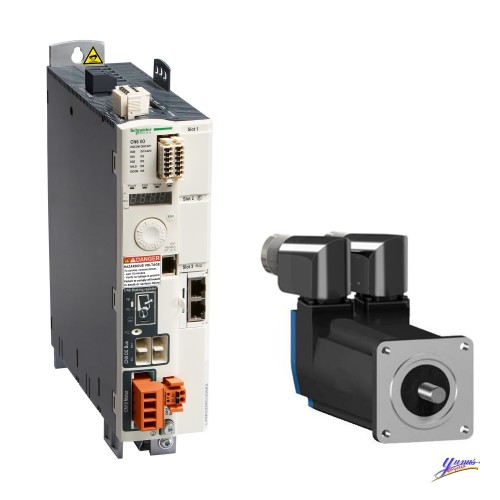

Schneider LXM32SU90M2 Motion servo drive - Lexium 32-single phase supply voltage 115/230V - 0.3/0.5kW

Main
range of product
Lexium 32
product or component type
Motion servo drive
device short name
LXM32S
format of the drive
Book
network number of phases
Single phase
[Us] rated supply voltage
100...120 V (- 15...10 %)
200...240 V (- 15...10 %)
supply voltage limits
170...264 V
85...132 V
supply frequency
50/60 Hz (- 5...5 %)
network frequency
47.5...63 Hz
EMC filter
Integrated
continuous output current
3 A (f = 8 kHz)
output current 3s peak
6 A at 115 V for 5 s
maximum continuous power
300 W at 115 V
nominal power
0.3 kW at 115 V (f = 8 kHz)
line current
5.4 A, THDI of 159 % at 115 V, without line choke
5.2 A, THDI of 90 % at 115 V, with external line choke of 2 mH
6.3 A, THDI of 107 % at 230 V, with external line choke of 2 mH
Complementary
switching frequency
8 kHz
overvoltage category
III
leakage current
<= 30 mA
output voltage
<= power supply voltage
electrical isolation
Between power and control
type of cable
Single-strand IEC cable (for θ = 50 °C) conductor material: copper 90 °C ,wire insulation material: XLPE/EPR
electrical connection
Terminal cable 3 mm² AWG 12 (CN8)
tightening torque
0.5 N.m (CN8)
discrete input number
2 capture
discrete input type
Capture (CAP)
sampling duration
0.25 ms
discrete input voltage
24 V DC for capture
discrete input logic
Positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
response time
<= 5 ms (compliment of STO_A, compliment of STO_B)
discrete output number
3
discrete output type
Logic (DO) 24 V DC
discrete output voltage
<= 30 V DC
discrete output logic
Positive or negative (DO) conforming to EN/IEC 61131-2
contact bounce time
<= 1 ms (compliment of STO_A, compliment of STO_B)
braking current
50 mA
response time on output
250 µs (DO) discrete
safety function
STO (safe torque off), integrated
safety level
SIL 3 conforming to EN/IEC 61508
communication interface
Integrated SERCOS III
Integrated Modbus
connector type
RJ45 (labelled CN7) :Modbus
commissioning port
2-wire RS485 multidrop Modbus
transmission rate
9600, 19200, 38400 bps for bus length of 40 m Modbus
number of addresses
Modbus
status LED
1 LED (red) servo drive voltage
signalling function
Display of faults in 7 segments
marking
CE
operating position
Vertical +/- 10 degree
product compatibility
Servo motor BMH (70 mm, 1 motor stacks)
width
68 mm
height
270 mm
depth
237 mm
product weight
1.8 kg

Environment
electromagnetic compatibility
Conducted EMC conforming to EN 55011 class A group 1
standards
EN/IEC 61800-3
product certifications
CSA
IP degree of protection
IP20 conforming to EN/IEC 60529
vibration resistance
1 gn (f = 13...150 Hz) conforming to EN/IEC 60068-2-6
shock resistance
15 gn for 11 ms conforming to EN/IEC 60028-2-27
pollution degree
2 conforming to EN/IEC 61800-5-1
environmental characteristic
Classes 3C1 conforming to IEC 60721-3-3
relative humidity
Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
ambient air temperature for operation
0...50 °C conforming to UL
ambient air temperature for storage
-25...70 °C
type of cooling
Natural convection
operating altitude
<= 1000 m without derating
