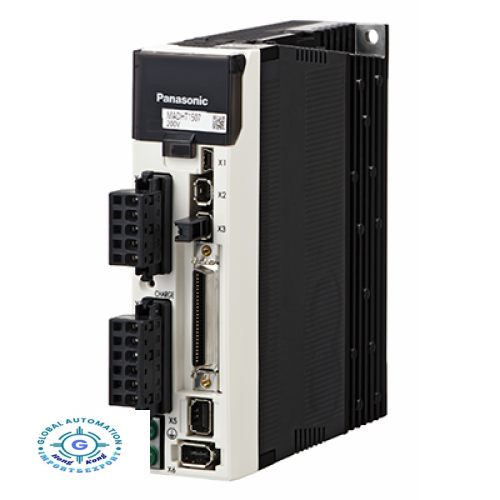

Panasonic MINAS A5 Family MADHT1105 Servo Driver
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MADHT1105 |
| Details | A5 series Speed, Position, Torque, Full-closed type with the safety function |
| Family Name | MINAS A5 |
| Series | A5 series |
| Type | Speed, Position, Torque, Full-closed type |
| Frame | A-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | with |
| Power device Max. current rating | 10A |
| Current detector current rating | 5A |
| Supply voltage | Single phase 100 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 40 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 130 |
| Mass (kg) | 0.8 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single phase 100 to 120V +10% -15% 50/60 Hz |
| Input power: Control circuit | Single phase 100 to 120V +10% -15% 50/60 Hz |
| Encoder feedback | 17-bit (131072 resolution) absolute encoder, 7-wire serial 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| External scale feedback | A/B phase, homing signal differential input. Serial communication is also supported. |
| Parallel I/O connector: Control signal Input | General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output | General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Input | 3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs) |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input | 2 inputs (Photo-coupler input, Line receiver input) |
| Parallel I/O connector: Pulse signal Output | 4 outputs (Line driver: 3 output, open collector: 1 output) |
| Communication function | USB, RS232, RS485 |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Communication function: RS232 | 1:1 communication |
| Communication function: RS485 | 1: n communication (max 31) |
| Regeneration | No built-in regenerative resistor (external resistor only) |
| Control mode | Switching among the following 7 mode is enabled, (1) Position control, (2) Speed control, (3) Torque control, (4) Position/speed control, (5) Position/Torque control, (6) Speed/Torque control, (7) Full-closed control |
