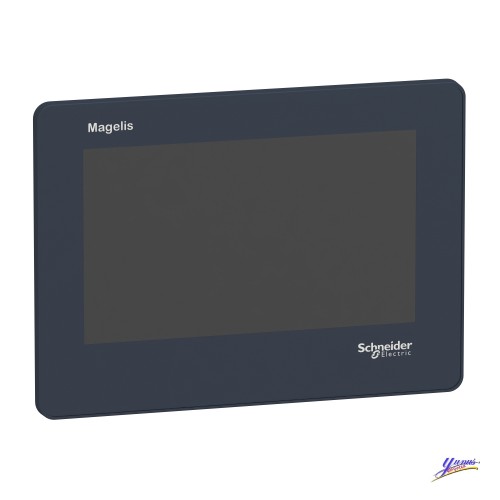

Schneider HMISTO735 4.3" wide screen touch panel, Ethernet,HMISTO735, Schneider

Schneider HMISTO735 4.3" wide screen touch panel, Ethernet

Main
range of product
Magelis STO & STU
product or component type
Touch panel screen
software designation
Vijeo XD
operating system
Magelis
Complementary
display size
4.3 inch
display type
Colour TFT LCD
display colour
65536 colours
display resolution
480 x 272 pixels
touch panel
Analogue
backlight lifespan
50000 hours with white
brightness
16 levels via touch panel
character font
Japanese (ANK, Kanji)
Taiwanese (traditional Chinese)
Chinese (simplified Chinese)
ASCII (European characters)
Korean
Cyrillic
[Us] rated supply voltage
12...24 V DC - 10...20 %
power consumption in W
8.1 W
number of pages
8999
port Ethernet
10BASE-T/100BASE-TX
memory description
Application memory, 26 MB
Back up of data, 512 kB
integrated connection type
1 RJ45 connector Ethernet TCP/IP
1 USB 2.0 type mini B
1 USB 2.0 type A
supply
External source
realtime clock
With RTC-battery set (optional)
downloadable protocols
Third party protocols
Modbus TCP
Modbus
range compatibility
Omron
MitsubishI
Allen-Bradley
Siemens
fixing mode
By 2 installation fasteners on 1.5 to 6 mm thick panel
enclosure material
PPT
front material
Plastic
cut-out dimensions
77.5 x 112.5 mm
66 x 105 mm (with mounting adaptor)
product weight
0.22 kg

Environment
standards
EN 61000-6-2
CSA C22.2 No 213
CSA C22.2 No 142
EN 61000-6-4
ANSI/ISA 12.12.01
UL 61010-1
UL 61010-2-201
EN 61131-2
product certifications
CE
ATEX zone 2/22
KCC
UL
C-Tick
CUL
directives
2002/96/EC - WEEE directive
1907/2006/EC - REACH directive
2002/95/EC - RoHS directive
ambient air temperature for operation
0...50 °C
ambient air temperature for storage
-20...60 °C
relative humidity
10...90 % without condensation
operating altitude
2000 m
IP degree of protection
IP20 (rear panel)
IP65f (front panel)
NEMA degree of protection
NEMA 4X/13 front panel (indoor use)
shock resistance
15 gn for 11 ms conforming to IEC 61131-2
vibration resistance
1 gn (f = 5...150 Hz) conforming to IEC 61131-2
3.5 mm constant amplitude (f = 5...150 Hz) conforming to IEC 61131-2
electromagnetic compatibility
Resistance to radiated electromagnetic fields : 10 V/m 80 MHz...2.7 GHz
Resistance to electrostatic discharge : 8 kV air discharge conforming to EN 61000-4-2 level 3
Resistance to electrostatic discharge : 6 kV direct contact conforming to EN 61000-4-2 level 3
