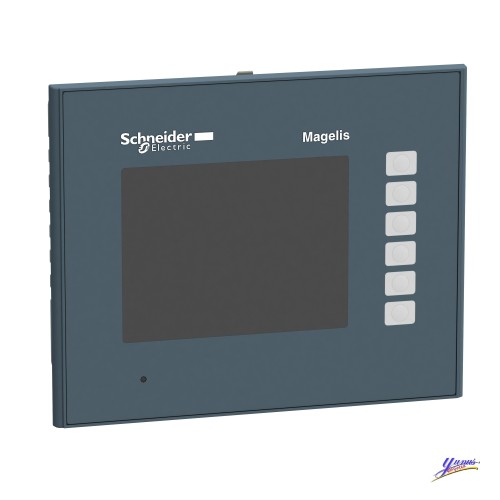

Schneider HMIGTO1310 Advanced touchscreen panel 320 x 240 pixels QVGA- 3.5" TFT - 96 MB,HMIGTO1310, Schneider
Schneider HMIGTO1310 Advanced touchscreen panel 320 x 240 pixels QVGA- 3.5" TFT - 96 MB
| range of product |
Magelis GTO
|
|
|---|---|---|
| product or component type |
Advanced touchscreen panel
|
|
| display colour |
65536 colours
|
|
| display size |
3.5 inch
|
|
| supply |
External source
|
|
| control button type |
Push-button, key type , marking: F1...F6, number of function
keys = 6 (operation defined using Vijeo Designer)
|
|
| operating system |
Magelis
|
|
| battery type |
Lithium battery for internal RAM, autonomy: 100 days, charging
time = 5 d, battery life = 10 yr
|
| terminal type |
Touchscreen display
|
|
|---|---|---|
| display type |
Backlit colour TFT LCD
|
|
| display resolution |
320 x 240 pixels QVGA
|
|
| touch sensitive zone |
1024 x 1024
|
|
| touch panel |
Resistive film, 1000000 cycles
|
|
| backlight lifespan |
50000 hours (white) at 25 °C
|
|
| brightness |
16 levels - control by touch panel
16 levels - control by software |
|
| character font |
ASCII (European characters)
Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) |
|
| [Us] rated supply voltage |
24 V DC
|
|
| supply voltage limits |
19.2...28.8 V
|
|
| inrush current |
<= 30 A
|
|
| power consumption in W |
<= 9.6 W
<= 5.2 W (when power is not supplied to external devices) <= 4.2 W (when backlight is OFF) <= 4.3 W (when backlight is dimmed) |
|
| local signalling |
Status LED (orange) flashing software starting up
Status LED (green) steady offline Status LED (green) steady operating Status LED (red) steady power supply (ON) Status LED (clear) faded power supply (OFF) |
|
| software designation |
Vijeo Designer configuration software >= V6.1
|
|
| memory description |
96 MB flash (EPROM)
|
|
| data backed up |
512 kB internal RAM (SRAM)
|
|
| data storage equipment |
SD card <= 32 GB
SDHC card <= 32 GB |
|
| downloadable protocols |
Modbus Plus Schneider Electric Modicon
FIPWAY Schneider Electric Modicon Modbus TCP Schneider Electric Modicon Modbus Schneider Electric Modicon Third party protocols Mitsubishi Melsec Third party protocols Omron Sysmac Third party protocols Rockwell Automation Allen-Bradley Third party protocols Siemens Simatic Uni-TE Schneider Electric Modicon |
|
| integrated connection type |
COM1 serial link RJ45, interface: RS232C/RS485, transmission
rate: 2400...115200 bps
COM1 serial link RJ45, interface: RS232C/RS485, transmission rate: 187.5 kbps compatible with Siemens MPI Ethernet RJ45, interface: 10BASE-T/100BASE-TX Ethernet RJ45, interface: IEEE 802.3 USB 2.0 type A USB 2.0 type mini B |
|
| product mounting |
Flush mounting
|
|
| fixing mode |
By 4 screw clamps
|
|
| front material |
PPT
|
|
| enclosure material |
PPT
|
|
| type of cooling |
Natural convection
|
|
| width |
132 mm
|
|
| height |
106 mm
|
|
| depth |
42 mm
|
|
| product weight |
0.4 kg
|
| standards |
EN 61131-2
IEC 61000-6-2 UL 508 |
|
|---|---|---|
| product certifications |
CE
C-Tick cULus KCC |
|
| ambient air temperature for operation |
0...50 °C
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
10...90 % without condensation
|
|
| operating altitude |
< 2000 m
|
|
| IP degree of protection |
IP20 rear panel conforming to IEC 60529
IP65 front panel conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 4X front panel (indoor use)
|
|
| shock resistance |
147 m/s² 3 chocks in each direction X, Y and Z conforming to
EN/IEC 61131-2
|
|
| vibration resistance |
3.5 mm (f = 5...9 Hz) conforming to EN/IEC 61131-2 X, Y, Z
directions for 10 cycles (approx. 100 min)
1 gn (f = 9...150 Hz) conforming to EN/IEC 61131-2 X, Y, Z directions for 10 cycles (approx. 100 min) |
|
| resistance to electrostatic discharge |
6 kV contact discharge conforming to IEC 61000-4-2 level 3
|
