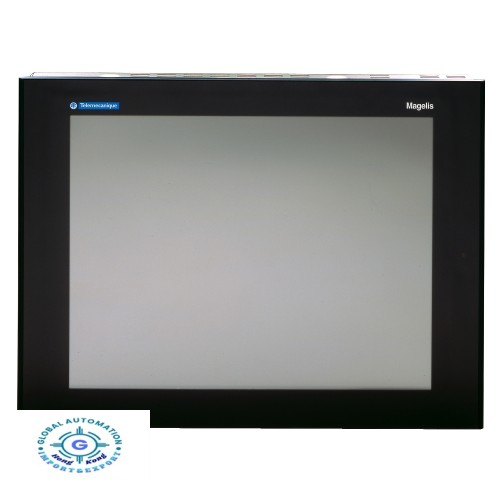

Schneider XBTGT7340 Advanced touchscreen panel - 1024 x 768 pixels XGA - 15" - TFT LCD - 24V DC

Main
range of product
Magelis XBTGT
product or component type
Advanced touchscreen panel
display type
Backlit colour TFT LCD
display colour
65536 colours
display resolution
1024 x 768 pixels XGA
display size
15 inch
software type
Configuration software
software designation
Vijeo Designer
operating system
Magelis
processor name
CPU RISC
processor frequency
266 MHz
memory description
512 kB SRAM back up of data with lithium battery back-up
resistance to electrostatic discharge
6 kV conforming to IEC 61000-4-2 level 3
cut-out dimensions
383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
Complementary
touch sensitive zone
1024 x 1024
touch panel
Analogue
backlight lifespan
50000 hours
brightness
8 levels via touch panel
character font
Korean
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
ASCII (European characters)
Taiwanese (traditional Chinese)
[Us] rated supply voltage
24 V DC
supply
External source
supply voltage limits
19.2...28.8 V
inrush current
<= 30 A
power consumption in W
42 W
local signalling
1 LED with green or orange for normal operation or backlighting faulty
number of pages
Limited by internal memory capacity
downloadable protocols
FIPWAY Telemecanique Modicon
Modbus Plus Telemecanique Modicon
Modbus TCP Telemecanique Modicon
Modbus Telemecanique Modicon
Third party protocols Mitsubishi Melsec
Third party protocols Omron Sysmac
Third party protocols Rockwell Automation Allen-Bradley
Third party protocols Siemens Simatic
Uni-TE Telemecanique Modicon
realtime clock
Built-in
use of slot
For 1 fieldbus communication card (Device Net, Profibus DP)
port Ethernet
10BASE-T/100BASE-TX
product mounting
Flush mounting
fixing mode
By 8 screw clamps
By 4 spring clips
front material
Aluminium alloy
enclosure material
Aluminium alloy
marking
CE
width
395 mm
height
294 mm
depth
60 mm
product weight
5.6 kg

Environment
immunity to microbreaks
<= 10 ms
standards
UL 1604
FCC Class A
UL 508
IEC 61000-6-2
CSA C22.2 No 14
EN 61131-2
product certifications
CSA Class 1 Division 2 T4A
UL Class 1 Division 2 T5
UL Class 1 Division 2 T4A
C-Tick
ATEX zone 2/22
CSA Class 1 Division 2 T5
cULus
ambient air temperature for operation
0...50 °C
ambient air temperature for storage
-20...60 °C
relative humidity
10...90 % without condensation
operating altitude
< 2000 m
IP degree of protection
IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529
NEMA degree of protection
NEMA 4X front panel (indoor use)
shock resistance
15 gn for 11 ms conforming to IEC 60068-2-27
resistance to electromagnetic fields
10 V/m conforming to IEC 61000-4-3
resistance to fast transients
2 kV conforming to IEC 61000-4-4 level 3
