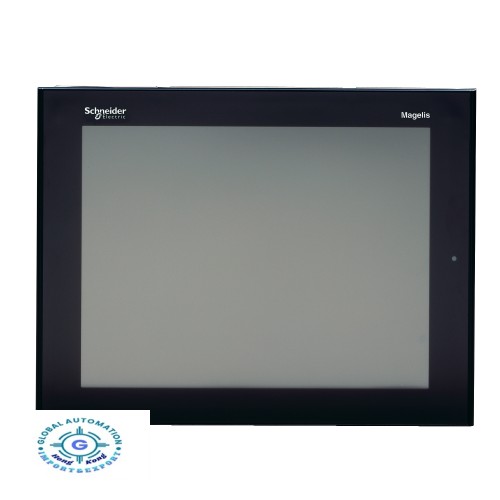

Schneider XBTGT6340 Advanced touchscreen panel - 800 x 600 pixels SVGA - 12.1" - 24V

Main
range of product	Magelis XBTGT
product or component type	Advanced touchscreen panel
display type	Backlit colour TFT LCD
display colour	65536 colours
display resolution	800 x 600 pixels SVGA
display size	12.1 inch
software type	Configuration software
software designation	Vijeo Designer
operating system	Magelis
processor name	CPU RISC
processor frequency	266 MHz
memory description	512 kB SRAM back up of data with lithium battery back-up
resistance to electrostatic discharge	6 kV conforming to IEC 61000-4-2 level 3
cut-out dimensions	301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm

Complementary
touch sensitive zone	1024 x 1024
touch panel	Analogue
backlight lifespan	50000 hours
brightness	8 levels via touch panel
character font	Taiwanese (traditional Chinese) Japanese (ANK, Kanji) Chinese (simplified Chinese) ASCII (European characters) Korean
[Us] rated supply voltage	24 V DC
supply	External source
supply voltage limits	19.2...28.8 V
inrush current	<= 30 A
power consumption in W	30 W
local signalling	1 LED with green or orange for normal operation or backlighting faulty
number of pages	Limited by internal memory capacity
downloadable protocols	FIPWAY Telemecanique Modicon Modbus Plus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Telemecanique Modicon Third party protocols Mitsubishi Melsec Third party protocols Omron Sysmac Third party protocols Rockwell Automation Allen-Bradley Third party protocols Siemens Simatic Uni-TE Telemecanique Modicon
realtime clock	Built-in
use of slot	For 1 fieldbus communication card (Device Net, Profibus DP)
port Ethernet	10BASE-T/100BASE-TX
product mounting	Flush mounting
fixing mode	By 4 spring clips By 4 screw clamps
front material	Aluminium alloy
enclosure material	PPT
marking	CE
width	313 mm
height	239 mm
depth	56 mm
product weight	3 kg

Environment
immunity to microbreaks	<= 10 ms
standards	IEC 61000-6-2 UL 1604 UL 508 CSA C22.2 No 14 EN 61131-2 FCC Class A
product certifications	C-Tick ATEX zone 2/22 CSA Class 1 Division 2 T5 CSA Class 1 Division 2 T4A UL Class 1 Division 2 T5 cULus UL Class 1 Division 2 T4A
ambient air temperature for operation	0...50 °C
ambient air temperature for storage	-20...60 °C
relative humidity	10...90 % without condensation
operating altitude	< 2000 m
IP degree of protection	IP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529
NEMA degree of protection	NEMA 4X front panel (indoor use)
shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3
resistance to fast transients	2 kV conforming to IEC 61000-4-4 level 3
