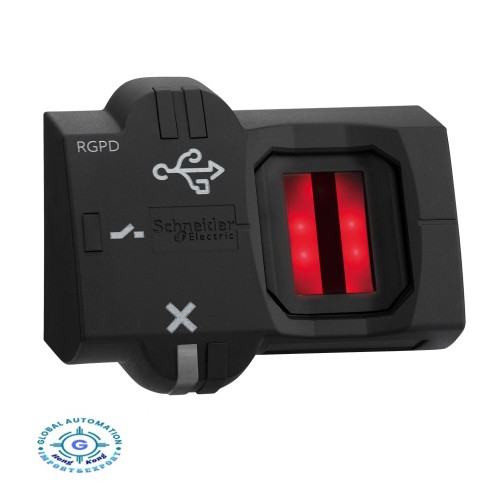

• Schneider XB5S7B2M12 Monostable Biometric switch RGPD - connection by M12 connector,XB5S7B2M12

Schneider XB5S7B2M12 Monostable Biometric switch RGPD - connection by M12 connector,XB5S7B2M12, Schneider

Schneider XB5S7B2M12 Monostable Biometric switch RGPD - connection by M12 connector

Main
product or component type
Biometric switch RGPD
product specific application
Materials handling
Industrial machines
device short name
XB5S
bezel material
Plastic
mounting diameter
22 mm
output type
PNP
sale per indivisible quantity
1
IP degree of protection
IP65 front face conforming to EN/IEC 60529
IP20 rear face conforming to EN/IEC 60529
type of operator
Momentary
operator profile
Fingerprint reader
memory usage
200 users with up to 2 fingerprints per user
Complementary
enclosure material
Polyamide PA66
cable insulation material
PvR
operating position
Flat surface installation
Vertical surface installation
Horizontal position
function of module
Monostable
product weight
0.183 kg
marking
CE
local signalling
1 LED orange, function: administrator's registration mode
1 LED orange, function: operator's registration mode
1 LED green, function: output state indicator
1 LED red, function: error
1 LED red, function: reset
short-circuit protection
250 mA by gG external fuse
[Us] rated supply voltage
24 V DC
electrical connection
M12 connector of 0.2 m
supply voltage limits
20...30 V DC
protection type
Overload protection
Reverse polarity
Short-circuit
maximum switching current
200 mA
[Ures] residual voltage
1 V, closed state
current consumption
<= 70 mA no-load
delay first up
<= 3 s + 0.5 ms per user registered
delay recovery
<= 1.5 s
delay response
<= 1.5 s

Environment
range of product
Harmony XB5S
ambient air temperature for storage
-25...70 °C
ambient air temperature for operation
-5...50 °C
NEMA degree of protection
NEMA 12
standards
IEC 61000-6-2
IEC 61000-6-4
product certifications
CSA
UL
vibration resistance
+/- 3 mm (f = 5...9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9...500 Hz) conforming to IEC 60068-2-6
shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27

XB5S1B2L2 Bistable Biometric switch - connection by 2m cable

XB5S1B2M12 Bistable Biometric switch - connection by M12 connector

XB5S2B2L2 Monostable Biometric switch - connection by 2m cable

XB5S2B2M12 Monostable Biometric switch - connection by M12 connector

XB5S6B2L2 Bistable Biometric switch, RGPD - connection by 2m cable

XB5S6B2M12 Bistable Biometric switch RGPD - connection by M12 connector

XB5S7B2L2 Monostable Biometric switch RGPD- connection by 2m cable
