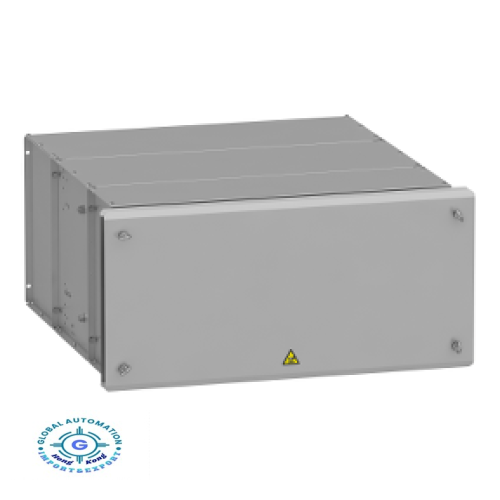

Schneider VW3A7755 Braking resistor - 8 ohms - 25 kW - IP23,VW3A7755, Schneider
Schneider VW3A7755 Braking resistor - 8 ohms - 25 kW - IP23
x
| product or component type |
Braking resistor
|
|---|
| range compatibility |
Altivar Process ATV900
Altivar Machine ATV340 |
|
|---|---|---|
| product compatibility |
Variable speed drive ATV930 wall mount 55 kW 380...480 V severe
cycle
Variable speed drive ATV930 wall mount 15 kW 200...240 V severe cycle Variable speed drive ATV950 wall mount 55 kW 380...480 V severe cycle Variable speed drive ATV340 45 kW 380...480 V severe cycle Variable speed drive ATV930 75 kW 500...690 V severe cycle Variable speed drive ATV930 90 kW 500...690 V severe cycle Variable speed drive ATV930 100 hp 600 V severe cycle |
|
| braking cycle |
Severe cycle (heavy duty) : <= 54 s braking with 100 % braking
torque for a 120 s cycle
Severe cycle (heavy duty) : <= 6 s braking with 165 % braking torque for a 120 s cycle |
|
| average power available |
25 kW at 50 °C
|
|
| ohmic value |
8 Ohm
|
|
| electrical connection |
Terminal, clamping capacity: <= 2.5 mm², AWG 12 for temperature
control switch
M12 bar wire for drive |
|
| protection type |
Thermal protection via drive or temperature control switch at
120 °C
|
|
| [Ue] rated operational voltage |
24 V DC
250 V AC |
|
| width |
540 mm
|
|
| height |
1035 mm
|
|
| depth |
1060 mm
|
|
| product weight |
87.5 kg
|
| ambient air temperature for operation |
0...50 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-25...70 °C
|
|
| IP degree of protection |
IP23
|
Schneider VW3A7755 Braking resistor - 8 ohms - 25 kW - IP23,VW3A7755
- Brand: Schneider
- Product Code: VW3A7755
- Availability: 1000
Tags: VW3A7755
