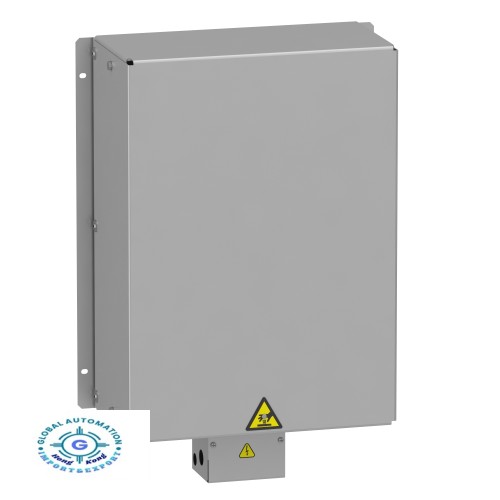

Schneider VW3A7751 Braking resistor - 60 ohms - 3.4 kW - IP20

Main
product or component type
Braking resistor
Complementary
range compatibility
Altivar Process ATV900
Altivar Machine ATV340
product compatibility
Variable speed drive ATV930 wall mount 5.5 kW 380...480 V severe cycle
Variable speed drive ATV930 wall mount 7.5 kW 380...480 V severe cycle
Variable speed drive ATV930 wall mount 2.2 kW 200...240 V severe cycle
Variable speed drive ATV950 wall mount 5.5 kW 380...480 V severe cycle
Variable speed drive ATV950 wall mount 7.5 kW 380...480 V severe cycle
Variable speed drive ATV340 4 kW 380...480 V severe cycle
Variable speed drive ATV340 5.5 kW 380...480 V severe cycle
Variable speed drive ATV930 7.5 kW 500...690 V severe cycle
Variable speed drive ATV930 11 kW 500...690 V severe cycle
Variable speed drive ATV930 10 hp 600 V severe cycle
Variable speed drive ATV930 15 hp 600 V severe cycle
braking cycle
Severe cycle (heavy duty) : <= 54 s braking with 100 % braking torque for a 120 s cycle
Severe cycle (heavy duty) : <= 6 s braking with 165 % braking torque for a 120 s cycle
average power available
3.4 kW at 50 °C
ohmic value
60 Ohm
electrical connection
Terminal, clamping capacity: <= 10 mm², AWG 8 for drive
Terminal, clamping capacity: <= 2.5 mm², AWG 12 for temperature control switch
protection type
Thermal protection via drive or temperature control switch at 120 °C
[Ue] rated operational voltage
24 V DC
250 V AC
width
390 mm
height
570 mm
depth
180 mm
product weight
8.3 kg

Environment
ambient air temperature for operation
0...50 °C
ambient air temperature for storage
-25...70 °C
IP degree of protection
IP20
