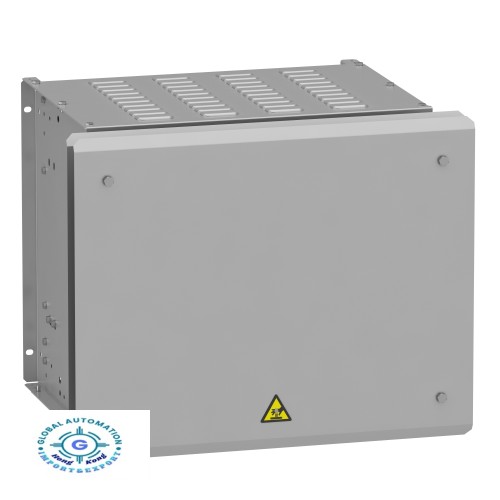

Schneider VW3A7746 Braking resistor - 5 ohms - 6.9 kW - IP23

Main
product or component type
Braking resistor
Complementary
range compatibility
Altivar Machine ATV340
Altivar Process ATV900
product compatibility
Variable speed drive ATV930 wall mount 75 kW 380...480 V medium cycle
Variable speed drive ATV930 wall mount 90 kW 380...480 V medium cycle
Variable speed drive ATV950 wall mount 75 kW 380...480 V medium cycle
Variable speed drive ATV950 wall mount 90 kW 380...480 V medium cycle
Variable speed drive ATV930 wall mount 18.5 kW 200...240 V severe cycle
Variable speed drive ATV340 55 kW 380...480 V medium cycle
Variable speed drive ATV340 75 kW 380...480 V medium cycle
braking cycle
Medium cycle (normal duty) : <= 4 s braking with 135 % braking torque for a 40 s cycle
Medium cycle (heavy duty) : <= 4 s braking with 165 % braking torque for a 40 s cycle
Severe cycle (heavy duty) : <= 54 s braking with 100 % braking torque for a 120 s cycle
Severe cycle (heavy duty) : <= 6 s braking with 165 % braking torque for a 120 s cycle
average power available
6.9 kW at 50 °C
ohmic value
5 Ohm
electrical connection
Terminal, clamping capacity: <= 2.5 mm², AWG 12 for temperature control switch
M10 bar wire for drive
protection type
Thermal protection via drive or temperature control switch at 120 °C
[Ue] rated operational voltage
24 V DC
250 V AC
width
540 mm
height
485 mm
depth
650 mm
product weight
30.5 kg

Environment
ambient air temperature for operation
0...50 °C
ambient air temperature for storage
-25...70 °C
IP degree of protection
IP23
