Schneider VW3A7733 Braking resistor - 16 ohms - 1.1 kW - IP20,VW3A7733, Schneider

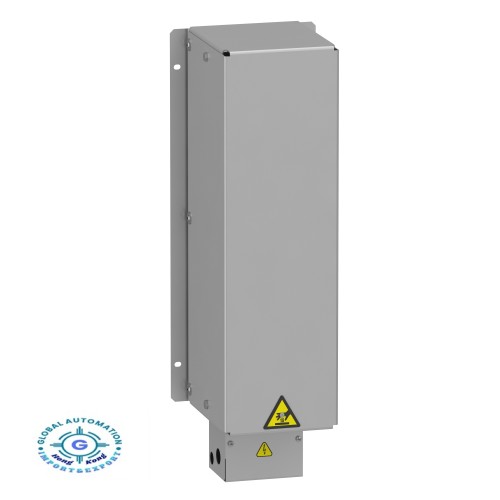

Schneider VW3A7733 Braking resistor - 16 ohms - 1.1 kW - IP20
| product or component type |
Braking resistor
|
|---|
| range compatibility |
Altivar Machine ATV340
Altivar Process ATV900 Altivar Machine ATV320 |
|
|---|---|---|
| product compatibility |
Variable speed drive ATV930 wall mount 18.5 kW 380...480 V light
cycle
Variable speed drive ATV930 wall mount 22 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 30 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 5.5 kW 200...240 V light cycle Variable speed drive ATV930 wall mount 7.5 kW 200...240 V light cycle Variable speed drive ATV950 wall mount 18.5 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 22 kW 380...480 V light cycle Variable speed drive ATV950 wall mount 30 kW 380...480 V light cycle Variable speed drive ATV930 wall mount 5.5 kW 200...240 V medium cycle Variable speed drive ATV930 wall mount 7.5 kW 200...240 V medium cycle Variable speed drive ATV340 15 kW 380...480 V light cycle Variable speed drive ATV340 18 kW 380...480 V light cycle Variable speed drive ATV340 22 kW 380...480 V light cycle Variable speed drive ATV320 4 kW 200...240 V Variable speed drive ATV320 5.5 kW 200...240 V Variable speed drive ATV320 15 kW 380...480 V Variable speed drive ATV930 22 kW 500...690 V light cycle Variable speed drive ATV930 30 kW 500...690 V light cycle Variable speed drive ATV930 37 kW 500...690 V light cycle Variable speed drive ATV930 30 hp 600 V light cycle Variable speed drive ATV930 40 hp 600 V light cycle Variable speed drive ATV930 50 hp 600 V light cycle |
|
| braking cycle |
Light cycle (heavy duty) : <= 0.8 s braking with 150 % braking
torque for a 40 s cycle
Light cycle (normal duty) : <= 0.8 s braking with 120 % braking torque for a 40 s cycle Medium cycle (normal duty) : <= 4 s braking with 135 % braking torque for a 40 s cycle Medium cycle (heavy duty) : <= 4 s braking with 165 % braking torque for a 40 s cycle |
|
| average power available |
1.1 kW at 50 °C
|
|
| ohmic value |
16 Ohm
|
|
| electrical connection |
Terminal, clamping capacity: <= 10 mm², AWG 8 for drive
Terminal, clamping capacity: <= 2.5 mm², AWG 12 for temperature control switch |
|
| protection type |
Thermal protection via drive or temperature control switch at
120 °C
|
|
| [Ue] rated operational voltage |
24 V DC
250 V AC |
|
| width |
190 mm
|
|
| height |
570 mm
|
|
| depth |
180 mm
|
|
| product weight |
3.8 kg
|
| ambient air temperature for operation |
0...50 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-25...70 °C
|
|
| IP degree of protection |
IP20
|
