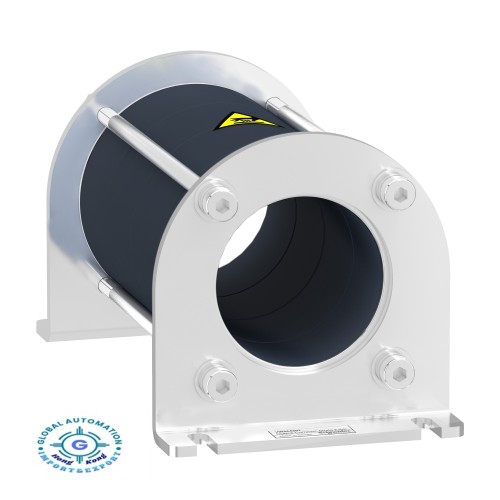

Schneider VW3A5501 Common mode filter for bearing current reduction - 146.4 µH,VW3A5501, Schneider
Schneider VW3A5501 Common mode filter for bearing current reduction - 146.4 µH
| product or component type |
Common mode output filter
|
|
|---|---|---|
| range compatibility |
Altivar Process ATV600
Altivar Process ATV900 Altivar Machine ATV340 |
|
| value of inductance |
146.4 µH
|
|
| product compatibility |
Variable speed drive ATV630 wall mount, motor: 0.75...11 kW,
380...480 V
Variable speed drive ATV650 wall mount, motor: 0.75...11 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 0.75...11 kW, 380...480 V Variable speed drive ATV950 wall mount, motor: 0.75...11 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 0.75...5.5 kW, 200...240 V Variable speed drive ATV930 wall mount, motor: 0.75...5.5 kW, 200...240 V |
| motor cable length |
<= 150 m (unshielded cable) motor: 0.75...11 kW 380...480 V,
with 1 filter
<= 150 m (shielded cable) motor: 0.75...4 kW 380...480 V, with 1 filter <= 300 m (shielded cable) motor: 5.5...11 kW 380...480 V, with 2 filter <= 500 m (unshielded cable) motor: 0.75...4 kW 380...480 V, with 2 filter <= 500 m (unshielded cable) motor: 5.5...11 kW 380...480 V, with 1 filter + VW3A5502 <= 500 m (shielded cable) motor: 0.75...4 kW 380...480 V, with 2 filter <= 1000 m (unshielded cable) motor: 0.75...5.5 kW 380...480 V, with 1 filter + VW3A5502 <= 150 m (unshielded cable) motor: 0.75...5.5 kW 200...240 V, with 1 filter <= 150 m (shielded cable) motor: 0.75...4 kW 200...240 V, with 1 filter <= 300 m (shielded cable) motor: 5.5 kW 200...240 V, with 2 filter <= 500 m (unshielded cable) motor: 0.75...4 kW 200...240 V, with 2 filter <= 500 m (unshielded cable) motor: 5.5 kW 200...240 V, with 1 filter + VW3A5502 <= 500 m (shielded cable) motor: 0.75...4 kW 200...240 V, with 2 filter <= 1000 m (unshielded cable) motor: 0.75...4 kW 200...240 V, with 1 filter + VW3A5502 |
|
|---|---|---|
| saturation current |
1.1 A
|
|
| internal diameter |
37.1 mm for 3-phase cable inside
37.1 mm for PE cable outside |
|
| electrical insulation class |
Class I
|
|
| mechanical robustness |
Shocks conforming to IEC 60721-3-3 class 3M4
Vibrations conforming to IEC 60721-3-3 class 3M4 |
|
| switching frequency |
<= 10 kHz
|
|
| output frequency |
<= 100 Hz
|
|
| height |
119.2 mm
|
|
| width |
66 mm
|
|
| depth |
66 mm
|
|
| product weight |
0.44 kg
|
| relative humidity |
5...95 % without condensation
|
|
|---|---|---|
| ambient air temperature for operation |
-15...60 °C
|
|
| ambient air temperature for storage |
-40...70 °C
|
Schneider VW3A5501 Common mode filter for bearing current reduction - 146.4 µH,VW3A5501
- Brand: Schneider
- Product Code: VW3A5501
- Availability: 1000
