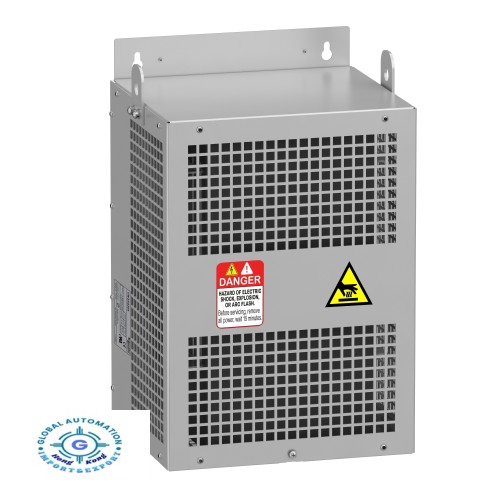

Schneider VW3A5301 Output dv/dt filter for variable speed drive - IP20

Main
product or component type
Dv/dt filter
range compatibility
Altivar Process ATV600
Altivar Process ATV900
Altivar Easy 610
Altivar Machine ATV340
product specific application
Output filter
[In] rated current
95 A
product compatibility
Variable speed drive ATV630 wall mount, motor: 15 kW 200...240 V
Variable speed drive ATV630 wall mount, motor: 18.5 kW 200...240 V
Variable speed drive ATV630 wall mount, motor: 22 kW 200...240 V
Variable speed drive ATV630 wall mount, motor: 30 kW 380...480 V
Variable speed drive ATV630 wall mount, motor: 37 kW 380...480 V
Variable speed drive ATV630 wall mount, motor: 45 kW 380...480 V
Variable speed drive ATV650 wall mount, motor: 30 kW 380...480 V
Variable speed drive ATV650 wall mount, motor: 37 kW 380...480 V
Variable speed drive ATV650 wall mount, motor: 45 kW 380...480 V
Variable speed drive ATV610 motor: 30 kW 380...415 V
Variable speed drive ATV610 motor: 37 kW 380...415 V
Variable speed drive ATV610 motor: 45 kW 380...415 V
Variable speed drive ATV930 wall mount, motor: 15 kW 200...240 V
Variable speed drive ATV930 wall mount, motor: 18.5 kW 200...240 V
Variable speed drive ATV930 wall mount, motor: 22 kW 200...240 V
Variable speed drive ATV930 wall mount, motor: 30 kW 380...480 V
Variable speed drive ATV930 wall mount, motor: 37 kW 380...480 V
Variable speed drive ATV930 wall mount, motor: 45 kW 380...480 V
Variable speed drive ATV950 wall mount, motor: 30 kW 380...480 V
Variable speed drive ATV950 wall mount, motor: 37 kW 380...480 V
Variable speed drive ATV950 wall mount, motor: 45 kW 380...480 V
nedded quantity
1
electrical connection
Terminal block, connection capacity: 50 mm² / AWG 1/0
Complementary
motor cable length
<= 300 m shielded cable at 4 kHz
<= 500 m unshielded cable at 4 kHz
dV/dt
3000 V/µs max at 200...240 V
3000 V/µs max at 380...480 V
thermal losses
92 W 4 kHz
maximum drive output frequency
<= 100 Hz
ambient air temperature for operation
50...60 °C with current derating 1.5 % per °C
-10...50 °C without current derating
operating altitude
0...1000 m without current derating
1000...4000 m with current derating 1 % per 100 m
width
300 mm
height
610 mm
depth
245 mm
product weight
19 kg

Environment
IP degree of protection
IP21 (with kit VW3A53905)
IP20
ambient air temperature for storage
-40...70 °C
