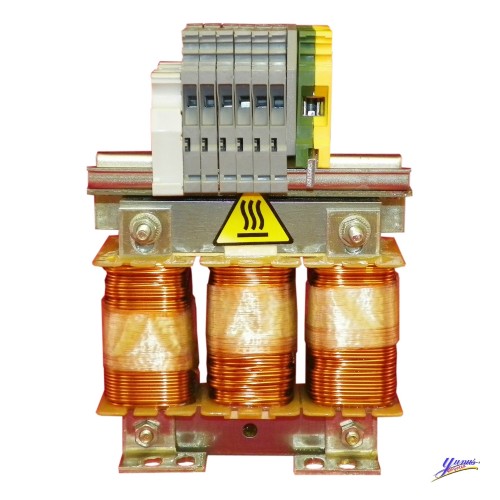

Schneider VW3A4555 Line/motor choke - 0.5 mH - 60 A - 3 phases - 94 W - for variable speed drive
| range of product |
Altivar
|
|
|---|---|---|
| product or component type |
Line/motor choke
|
|
| product compatibility |
ATV71HD75Y - line choke - 1 per drive
ATV61HD15M3X - line choke - 1 per drive ATV61HD30N4 - line choke - 1 per drive ATV61HD37N4 - line choke - 1 per drive ATV61HD45N4 - line choke - 1 per drive ATV61HD55N4 - line choke - 1 per drive ATV61HD55Y - line choke - 1 per drive ATV61HD75Y - line choke - 1 per drive ATV61HD90Y - line choke - 1 per drive ATV61WD30N4 - line choke - 1 per drive ATV61WD30N4C - line choke - 1 per drive ATV61WD37N4 - line choke - 1 per drive ATV61WD37N4C - line choke - 1 per drive ATV61WD45N4 - line choke - 1 per drive ATV61WD45N4C - line choke - 1 per drive ATV61WD55N4 - line choke - 1 per drive ATV61WD55N4C - line choke - 1 per drive ATV71HD15M3X - line choke - 1 per drive ATV71HD30N4 - line choke - 1 per drive ATV71HD37N4 - line choke - 1 per drive ATV71HD45N4 - line choke - 1 per drive ATV71HD55N4 - line choke - 1 per drive ATV71HD55Y - line choke - 1 per drive ATV71HD90Y - line choke - 1 per drive ATV71WD30N4 - line choke - 1 per drive ATV71WD37N4 - line choke - 1 per drive ATV71WD45N4 - line choke - 1 per drive ATV71WD55N4 - line choke - 1 per drive Variable speed drive ATV340 motor : 22 kW 380...480 V - line choke - 1 per drive Variable speed drive ATV320 motor : 11 kW 200...240 V - three phase - motor choke - 1 per drive Variable speed drive ATV320 motor : 15 kW 200...240 V - three phase - motor choke - 1 per drive Variable speed drive ATV630 motor : 55 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor : 75 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor : 90 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 motor : 55 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 motor : 75 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 motor : 90 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor : 600 V - three phase - line choke - 75 hp - 1 per drive Variable speed drive ATV630 motor : 600 V - three phase - line choke - 100 hp - 1 per drive Variable speed drive ATV930 motor : 600 V - three phase - line choke - 100 hp - 1 per drive Variable speed drive ATV930 motor : 600 V - three phase - line choke - 75 hp - 1 per drive |
|
| number of phases |
Three phase
|
|
| range compatibility |
Altivar 61
Altivar 71 Altivar Process ATV600 Altivar Process ATV900 Altivar Machine ATV320 Altivar Machine ATV340 |
|
| device application |
Reduction of current harmonics
Reduction of overvoltages at motor terminals |
|
| value of inductance |
0.3 mH
|
|
| [In] rated current |
107 A
|
|
| thermal losses |
260 W
|
|
| electrical connection |
Bare wires, Ø = 6.5 mm
|
| power supply frequency |
50...60 Hz
|
|
|---|---|---|
| max current |
1.65 x nominal current for 60 s
|
|
| voltage drop at rated load |
5 %
|
|
| electrical insulation class |
Class F
|
|
| clearance distance |
5.5 mm conforming to IEC 60664
|
|
| leakage distance |
11.5 mm conforming to IEC 60664
|
|
| product weight |
16 kg
|
|
| width |
270 mm
|
|
| height |
210 mm
|
|
| depth |
180 mm
|
| standards |
EN 50178
IEC 60076 (with HD398) VDE 0160 level 1 |
|
|---|---|---|
| IP degree of protection |
IP00 (choke)
IP00 (terminals) |
|
| environmental characteristic |
3B1 conforming to IEC 721-3-3
3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3 |
|
| pollution degree |
2 conforming to EN 50178
|
|
| vibration resistance |
1.5 mm peak to peak (f = 3...13 Hz) conforming to IEC 60068-2-6
1 gn (f = 13...200 Hz) conforming to IEC 60068-2-6 |
|
| shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
| relative humidity |
0...95 %
|
|
| ambient air temperature for operation |
> 45...< 55 °C with current derating of 2 % per °C
0...45 °C without current derating |
|
| ambient air temperature for storage |
-25...70 °C
|
|
| operating altitude |
<= 1000 m without current derating
1000...3000 m with current derating 1 % per 100 m |
