Schneider VW3A3422 Analog encoder interface module,VW3A3422, Schneider

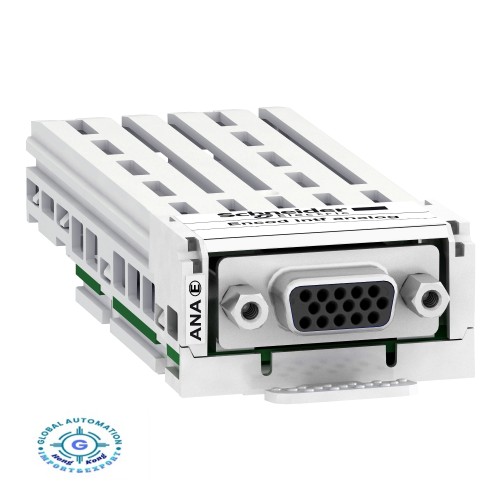

Schneider VW3A3422 Analog encoder interface module
| range of product |
Altivar
|
|
|---|---|---|
| product or component type |
Analog encoder interface module
|
|
| range compatibility |
Altivar Machine ATV340
Altivar Process Modular Altivar Process ATV900 |
|
| encoder type |
SinCos Hiperface
1 Vpp |
|
| [Us] rated supply voltage |
5 V DC (voltage limits: 4.75...5.25 V)
12 V DC (voltage limits: 11.4...12.6 V) 24 V DC (voltage limits: 22.8...25.2 V) |
| supply current |
<= 0.25 A (5 V DC)
<= 0.1 A (12 V DC) <= 0.05 A (24 V DC) |
|
|---|---|---|
| protection type |
Short-circuit protection
Overload protection |
|
| cable distance between devices |
<= 100 m
|
|
| maximum operating frequency |
100 kHz
|
|
| input signal |
Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp-
|
|
| output signal |
Data+, Data-
|
|
| connector type |
1 female high density SUB-D 15
|
|
| product weight |
0.15 kg
|
Schneider VW3A3422 Analog encoder interface module,VW3A3422
- Brand: Schneider
- Product Code: VW3A3422
- Availability: 1000
