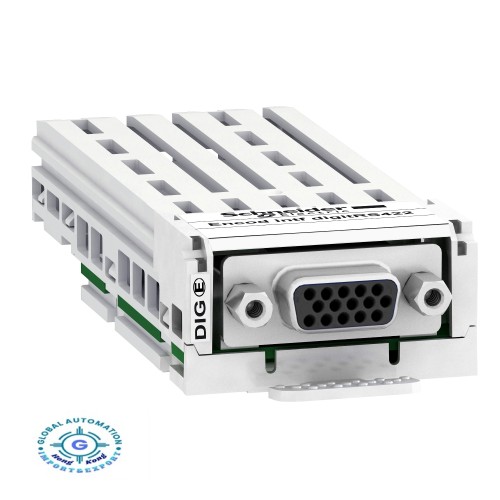

Schneider VW3A3420 Digital encoder interface module
| range of product |
Altivar
|
|
|---|---|---|
| product or component type |
Digital encoder interface module
|
|
| range compatibility |
Altivar Process ATV900
Altivar Process Modular Altivar Machine ATV340 |
|
| communication port protocol |
RS422
|
|
| encoder type |
EnDat 2.2
A/B/I incremental (XCC1 type R) A/B/I incremental (XCC1 type X) SSI absolute encoder (XCC2 type SG) SSI absolute encoder (XCC3 type SB) |
|
| [Us] rated supply voltage |
5 V DC (voltage limits: 4.75...5.25 V)
12 V DC (voltage limits: 11.4...12.6 V) 24 V DC (voltage limits: 22.8...25.2 V) |
| supply current |
<= 0.25 A (5 V DC)
<= 0.1 A (12 V DC) <= 0.05 A (24 V DC) |
|
|---|---|---|
| protection type |
Short-circuit protection
Overload protection |
|
| maximum operating frequency |
1000 kHz
|
|
| input signal |
TTL
Data+, Data- (EnDat 2.2) Data+, Data- (SSI) Temp+, Temp- A+,A-/B+,B-/I+,I- (A/B/I) |
|
| input impedance |
121 Ohm
|
|
| output signal |
Clock+, Clock- (SSI)
Data+, Data-, Clock+, Clock- (EnDat 2.2) |
|
| connector type |
1 female high density SUB-D 15
|
|
| product weight |
0.15 kg
|
