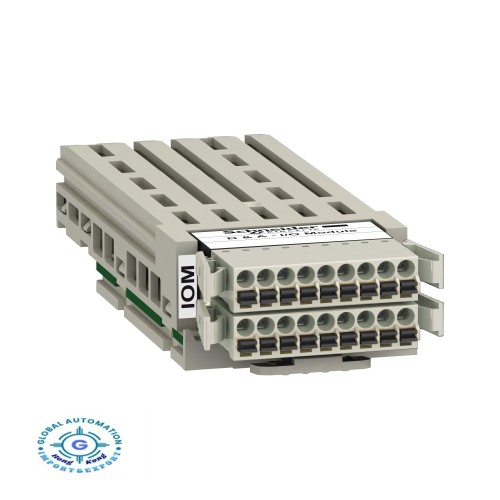

Schneider VW3A3203 Extended I/O module - discrete 6I/2O - analog 2I

Main
product or component type
Additional I/O module
range compatibility
Altivar Easy 610
Altivar Machine ATV340
Altivar Process ATV600
Altivar Process ATV900
input/output type
2 analog input(s) configurable voltage, current or probe
6 discrete input(s)
2 discrete output(s)
analogue input number
2
analogue input type
AI1, AI2 configurable current : 0...20 mA/4...20 mA, sampling time: 0...1 ms, resolution: 14 bits
AI1, AI2 configurable voltage : - 10...10 V DC, 24 V max, impedance: 20 kOhm, sampling time: 0...1 ms, resolution: 14 bits
AI1, AI2 configurable PTC, Pt 100, Pt 1000, sampling time: 0...1 ms, resolution: 14 bits
discrete output number
2
discrete output type
(DQ11, DQ12) assignable logic, sampling time: <= 1 ms
discrete output logic
(DQ11, DQ12) negative
(DQ11, DQ12) positive
discrete input number
6
discrete input type
(DI11...DI16) programmable, , impedance: 250 Ohm, sampling time: <= 1 ms
discrete input logic
(DI11...DI16) negative
(DI11...DI16) positive
discrete input current
2.5 mA

Complementary
discrete output voltage
24 V DC (voltage limits:<= 30 V) assignable logic
maximum output current
100 mA, assignable logic
discrete input voltage
24 V DC (voltage limits:<= 30 V) for programmable
electrical connection
Removable spring terminal block, 1.5 mm² / AWG 16
protection type
Short-circuit protection on output
Reverse polarity protection on digital input
product weight
0.5 kg
