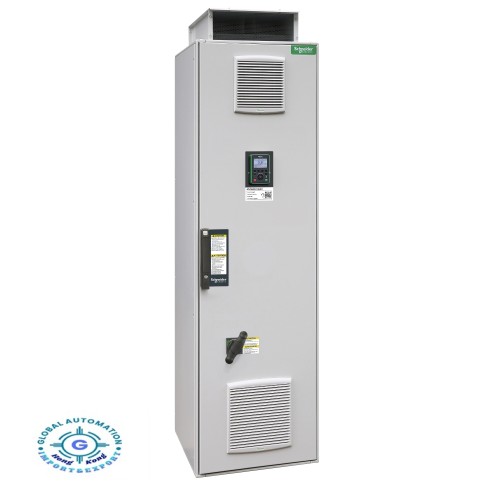

Schneider ATV960C25T4X1 High Performance Drive System ATV960 - 280/220kW - 480 V - IP23
| range of product |
Altivar Process ATV900
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device application |
Industrial application
|
|
| device short name |
ATV960
|
|
| product destination |
Asynchronous motors
Synchronous motors |
|
| assembly style |
In floor-standing enclosure compact version
|
|
| provided equipment |
Graphical operating panel in the enclosure door
Frequency inverter Main switch Line choke Terminal block for main supply Terminal block for motor Enclosure for Spacial SF |
|
| cable entry |
Bottom
|
|
| colour of enclosure |
Light grey RAL 7035
|
|
| IP degree of protection |
IP23 conforming to IEC 61800-5-1
|
|
| type of cooling |
Forced convection
|
|
| [Us] rated supply voltage |
480 V (+/- 10 %)
|
|
| supply frequency |
50/60 Hz (+/- 5 %)
|
|
| network number of phases |
3 phases
|
|
| overvoltage category |
III
|
|
| asynchronous motor control profile |
Constant torque standard
Variable torque standard Optimized torque mode |
|
| synchronous motor control profile |
Permanent magnet motor
|
|
| output voltage |
<= power supply voltage
|
|
| permissible temporary current boost |
1.5 x In for 60 s (heavy duty)
1.2 x In for 60 s (normal duty) |
|
| nominal switching frequency |
2.5 kHz
|
|
| switching frequency |
2...8 kHz adjustable with derating factor
|
|
| speed drive output frequency |
0.1...500 Hz
|
|
| motor power kW |
220 kW (heavy duty)
280 kW (normal duty) |
|
| continuous output current |
477 A at 2.5 kHz (normal duty)
370 A at 2.5 kHz (heavy duty) |
|
| line current |
400 A at 480 V (normal duty)
323 A at 480 V (heavy duty) |
|
| apparent power |
333 kVA at 480 V (normal duty)
268 kVA at 480 V (heavy duty) |
|
| THDI |
<= 48 % full load conforming to IEC 61000-3-12
|
|
| short-circuit protection |
Upstream : 500 A gG fuse (normal duty)
Upstream : 400 A gG fuse (heavy duty) Internal : 315 A 2 aR fuse |
|
| power dissipation in W |
5750 W total (normal duty)
4340 W total (heavy duty) 730 W control part (normal duty) 520 W control part (heavy duty) |
|
| volume of cooling air |
140 m3/h for control
1160 m3/h for power |
|
| noise level |
70 dB 86/188/EEC - physical agents (noise) directive
|
|
| prospective line Isc |
50 kA for 100 ms
|
|
| electrical connection |
Control : removable screw terminals 0.5...1.5 mm²
Main supply : M12 bar Motor : M12 bar |
|
| motor recommanded cable cross section |
2 x (3 x 150 mm²) (normal duty)
3 x (3 x 95 mm²) (normal duty) 2 x (3 x 120 mm²) (heavy duty) 3 x (3 x 70 mm²) (heavy duty) |
|
| width |
600 mm
|
|
| height |
2150 mm
|
|
| depth |
664 mm
|
|
| product weight |
400 kg
|
|
| number of preset speeds |
16 preset speeds
|
|
| communication port protocol |
Ethernet/IP
Modbus serial Modbus TCP |
|
| option module |
Slot A : communication module for Profibus DP V1
Slot A : communication module for Profinet Slot A : communication module for DeviceNet Slot A : communication module for CANopen daisy chain RJ45 Slot A : communication module for CANopen SUB-D 9 Slot A : communication module for CANopen screw terminals Slot A : communication module for EtherCAT Slot A/slot B/slot C : digital and analog I/O extension module Slot A/slot B/slot C : output relay extension module Slot B : 5/12 V digital encoder interface module Slot B : analog encoder interface module Slot B : resolver encoder interface module |
|
| safety function |
STO (safe torque off) SIL 3 for <= 100 ms
|
|
| EMC filter |
Integrated conforming to EN/IEC 61800-3 category C3 shielded
cable with <= 50 m motor cable maxi
Integrated conforming to EN/IEC 61800-3 category C4 unshielded cable with <= 80 m motor cable maxi |
| maximum transient current |
555 A 60 s per 10 min heavy duty
572 A 60 s per 10 min normal duty |
|
|---|---|---|
| motor slip compensation |
Adjustable
Automatic whatever the load Can be suppressed Not available in permanent magnet motor law |
|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01 to 9000 s
S, U or customized |
|
| braking to standstill |
By DC injection
|
|
| protection type |
Motor : thermal protection
Motor : safe torque off Motor : motor phase break Drive : thermal protection Drive : safe torque off Drive : overheating Drive : short-circuit protection Drive : motor phase break Drive : line supply overvoltage Drive : line supply undervoltage Drive : line supply phase loss Drive : overspeed Drive : break on the control circuit Drive : overcurrent (between output phases and earth) Drive : overload (output) Drive : overvoltage (DC bus) Drive : short-circuit protection with semi-conductor fuse (main supply) Drive : fan monitoring |
|
| frequency resolution |
Display unit : 0.1 Hz
Analog input : 0.012/50 Hz |
|
| connector type |
2 RJ45 (on the control block) for Ethernet IP/Modbus TCP
1 RJ45 (on the control block) for Modbus serial |
|
| physical interface |
2-wire RS 485 for Modbus serial
|
|
| transmission frame |
RTU for Modbus serial
|
|
| transmission rate |
10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
|
| exchange mode |
Half duplex, full duplex, autonegotiation for Ethernet IP/Modbus
TCP
|
|
| data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
| type of polarization |
No impedance for Modbus serial
|
|
| number of addresses |
1...247 for Modbus serial
|
|
| method of access |
Slave for Modbus TCP
|
|
| supply |
External supply for digital inputs : 24 V DC (19...30 V) current
<= 1.25 mA (overload and short-circuit protection)
Internal supply for reference potentiometer (1 to 10 kOhm) : 10.5 V DC +/- 5 % current <= 10 mA (overload and short-circuit protection) Internal supply for digital inputs and STO : 24 V DC (21...27 V) current <= 200 mA (overload and short-circuit protection) |
|
| local signalling |
LCD display unit, located on front door for operation function,
status and configuration
|
|
| analogue input type |
Software-configurable voltage AI1, AI2, AI3 : 0...10 V DC
impedance 30 kOhm, resolution 12 bits
Software-configurable current AI1, AI2, AI3 : 0...20 mA impedance 250 Ohm, resolution 12 bits |
|
| discrete input number |
10
|
|
| discrete input type |
Programmable DI1...DI8 : 24 V DC (<= 30 V) impedance 3.5 kOhm
Programmable as pulse input DI7, DI8 0...30 kHz : 24 V DC (<= 30 V) Safe torque off STOA, STOB : 24 V DC (<= 30 V) impedance > 2.2 kOhm |
|
| input compatibility |
Discrete input STOA, STOB : level 1 PLC conforming to EN/IEC
61131-2
Discrete input DI1...DI8 : level 1 PLC conforming to EN/IEC 61131-2 Pulse input DI7, DI8 : level 1 PLC conforming to IEC 65A-68 |
|
| discrete input logic |
STOA, STOB, positive logic (source) : < 5 V (state 0) > 11 V
(state 1)
DI1...DI8, positive logic (source) : < 5 V (state 0) > 11 V (state 1) DI1...DI8, negative logic (sink) : > 16 V (state 0) < 10 V (state 1) DI7, DI8, positive logic (source) : < 0.6 V (state 0) > 2.5 V (state 1) |
|
| analogue output number |
2
|
|
| analogue output type |
Software-configurable voltage AQ1, AQ2 : 0...10 V DC impedance
470 Ohm, resolution 10 bits
Software-configurable current AQ1, AQ2 : 0...20 mA impedance 500 Ohm, resolution 10 bits |
|
| discrete output number |
2
|
|
| discrete output type |
Logic output DQ+ : 0...1 kHz (<= 30 V) DC, 100 mA
Logic output DQ- : 0...1 kHz (<= 30 V) DC, 100 mA Programmable as pulse output DQ+ : 0...30 kHz (<= 30 V) DC, 100 mA |
|
| sampling duration |
Discrete input DI1...DI8 : 2 ms (+/- 0.5 ms)
Pulse input DI7, DI8 : 5 ms (+/- 1 ms) Analog input AI1, AI2, AI3 : 1 ms (+/- 1 ms) Analog output AQ1, AQ2 : 5 ms (+/- 1 ms) |
|
| accuracy |
Analog input AI1, AI2, AI3 : +/- 0.6 % for a temperature
variation 60 °C
Analog output AQ1, AQ2 : +/- 1 % for a temperature variation 60 °C |
|
| linearity error |
Analog input AI1, AI2, AI3 : +/- 0.15 % of maximum value
Analog output AQ1, AQ2 : +/- 0.2 % |
|
| relay output number |
3
|
|
| relay output type |
Configurable relay logic R1 : fault relay NO/NC electrical
durability 100000 cycles
Configurable relay logic R2 : sequence relay NO electrical durability 1000000 cycles Configurable relay logic R3 : sequence relay NO electrical durability 1000000 cycles |
|
| refresh time |
5 ms +/- 0.5 ms R1, R2, R3 relay output
|
|
| minimum switching current |
Relay output R1, R2, R3 : 5 mA at 24 V DC
|
|
| maximum switching current |
Relay output R1 on resistive load (cos phi = 1) : 3 mA at 250 V
AC
Relay output R1 on resistive load (cos phi = 1) : 3 mA at 30 V DC Relay output R1 on inductive load (cos phi = 0.4 and L/R = 7 ms) : 2 mA at 250 V AC Relay output R1 on inductive load (cos phi = 0.4 and L/R = 7 ms) : 2 mA at 30 V DC Relay output R2, R3 on resistive load (cos phi = 1) : 5 mA at 250 V AC Relay output R2, R3 on resistive load (cos phi = 1) : 5 mA at 30 V DC Relay output R2, R3 on inductive load (cos phi = 0.4 and L/R = 7 ms) : 2 mA at 250 V AC Relay output R2, R3 on inductive load (cos phi = 0.4 and L/R = 7 ms) : 2 mA at 30 V DC |
|
| isolation |
Between power and control terminals
|
