Schneider ATV960C25Q4X1 High Performance Drive System,ATV960C25Q4X, Schneider

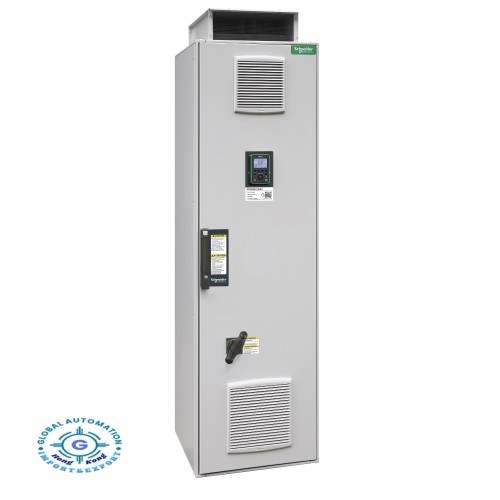

Schneider ATV960C25Q4X1 High Performance Drive System ATV960 - 250/200kW - 400 V - IP23

ATV960C20T4X1

ATV960C20Q4X1

ATV960C16T4X1

ATV960C16Q4X1

ATV960C13T4X1

ATV960C13Q4X1

ATV960C11T4X1

ATV960C11Q4X1

ATV960C31Q4X1

ATV960C31T4X1

ATV960C35Q4X1

ATV960C35T4X1

ATV960C40Q4X1

ATV960C40T4X1

ATV960C45Q4X1

ATV960C45T4X1

ATV960C50Q4X1

ATV960C50T4X1

ATV960C56Q4X1

ATV960C56T4X1

ATV960C63Q4X1

ATV960C63T4X1

ATV960C71Q4X1

ATV960C71T4X1

ATV960C80Q4X1

ATV960C80T4X1

Main
range of product	Altivar Process ATV900
product or component type	Variable speed drive
device application	Industrial application
device short name	ATV960
product destination	Asynchronous motors Synchronous motors
assembly style	In floor-standing enclosure compact version
provided equipment	Graphical operating panel in the enclosure door Frequency inverter Main switch Line choke Terminal block for main supply Terminal block for motor Enclosure for Spacial SF
cable entry	Bottom
colour of enclosure	Light grey RAL 7035
IP degree of protection	IP23 conforming to IEC 61800-5-1
type of cooling	Forced convection
[Us] rated supply voltage	380...415 V (- 10...6 %)
supply frequency	50/60 Hz (+/- 5 %)
network number of phases	3 phases
overvoltage category	III
asynchronous motor control profile	Constant torque standard Variable torque standard Optimized torque mode
synchronous motor control profile	Permanent magnet motor
output voltage	<= power supply voltage
permissible temporary current boost	1.5 x In for 60 s (heavy duty) 1.2 x In for 60 s (normal duty)
nominal switching frequency	2.5 kHz
switching frequency	2...8 kHz adjustable with derating factor
speed drive output frequency	0.1...500 Hz
motor power kW	250 kW (normal duty) 200 kW (heavy duty)
continuous output current	477 A at 2.5 kHz (normal duty) 370 A at 2.5 kHz (heavy duty)
line current	432 A at 400 V (normal duty) 353 A at 400 V (heavy duty)
apparent power	299 kVA at 400 V (normal duty) 244 kVA at 400 V (heavy duty)
THDI	<= 48 % full load conforming to IEC 61000-3-12
short-circuit protection	Upstream : 500 A gG fuse (normal duty) Upstream : 400 A gG fuse (heavy duty) Internal : 315 A 2 aR fuse
power dissipation in W	5750 W total (normal duty) 4340 W total (heavy duty) 730 W control part (normal duty) 520 W control part (heavy duty)
volume of cooling air	140 m3/h for control 1160 m3/h for power
noise level	70 dB 86/188/EEC - physical agents (noise) directive
prospective line Isc	50 kA for 100 ms
electrical connection	Control : removable screw terminals 0.5...1.5 mm² Main supply : M12 bar Motor : M12 bar
motor recommanded cable cross section	2 x (3 x 150 mm²) (normal duty) 3 x (3 x 95 mm²) (normal duty) 2 x (3 x 120 mm²) (heavy duty) 3 x (3 x 70 mm²) (heavy duty)
width	600 mm
height	2150 mm
depth	664 mm
product weight	400 kg
number of preset speeds	16 preset speeds
communication port protocol	Ethernet/IP Modbus serial Modbus TCP
option module	Slot A : communication module for Profibus DP V1 Slot A : communication module for Profinet Slot A : communication module for DeviceNet Slot A : communication module for CANopen daisy chain RJ45 Slot A : communication module for CANopen SUB-D 9 Slot A : communication module for CANopen screw terminals Slot A : communication module for EtherCAT Slot A/slot B/slot C : digital and analog I/O extension module Slot A/slot B/slot C : output relay extension module Slot B : 5/12 V digital encoder interface module Slot B : analog encoder interface module Slot B : resolver encoder interface module
safety function	STO (safe torque off) SIL 3 for <= 100 ms
EMC filter	Integrated conforming to EN/IEC 61800-3 category C3 shielded cable with <= 50 m motor cable maxi Integrated conforming to EN/IEC 61800-3 category C4 unshielded cable with <= 80 m motor cable maxi
