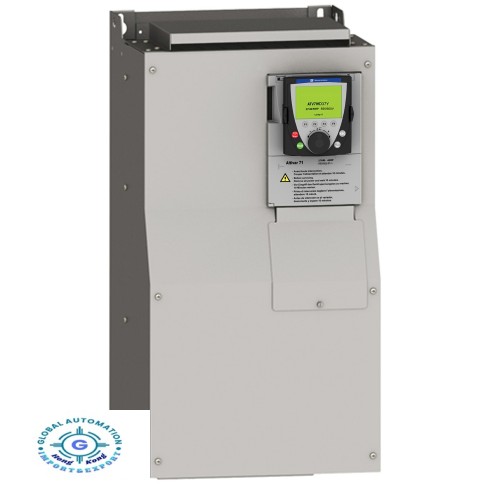

Schneider ATV61HD75N4Z Variable speed drive ATV61 - 75kW 100HP - 380...480V - IP20

Main
range of product
Altivar 61
product or component type
Variable speed drive
product specific application
Pumping and ventilation machine
component name
ATV61
motor power kW
75 kW 3 phases at 380...480 V
motor power hp
100 hp 3 phases at 380...480 V
power supply voltage
380...480 V (- 15...10 %)
supply number of phases
3 phases
line current
137 A for 480 V 3 phases 75 kW / 100 hp
167 A for 380 V 3 phases 75 kW / 100 hp
EMC filter
Level 3 EMC filter
variant
Without remote graphic terminal
assembly style
With heat sink
apparent power
109.9 kVA for 380 V 3 phases 75 kW / 100 hp
maximum prospective line Isc
22 kA 3 phases
maximum transient current
192 A for 60 s 3 phases
nominal switching frequency
12 kHz
switching frequency
1...16 kHz adjustable
12...16 kHz with derating factor
asynchronous motor control
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard
Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, 2 points
synchronous motor control profile
Vector control without sensor, standard
communication port protocol
Modbus
CANopen
type of polarization
No impedance for Modbus
option card
APOGEE FLN communication card
BACnet communication card
CC-Link communication card
Controller inside programmable card
DeviceNet communication card
Ethernet/IP communication card
Fipio communication card
I/O extension card
Interbus-S communication card
LonWorks communication card
METASYS N2 communication card
Modbus Plus communication card
Modbus TCP communication card
Modbus/Uni-Telway communication card
Multi-pump card
Profibus DP communication card
Profibus DP V1 communication card
