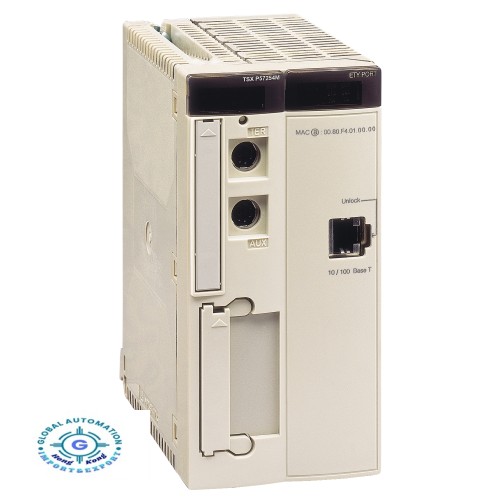

• Schneider TSXP57254M Unity processor - 8 racks (12 slots) / 16 racks (4/6/8 slots) - 930 mA, 5V DC,TSXP57254M

Schneider TSXP57254M Unity processor - 8 racks (12 slots) / 16 racks (4/6/8 slots) - 930 mA, 5V DC,TSXP57254M, Schneider

Schneider TSXP57254M Unity processor - 8 racks (12 slots) / 16 racks (4/6/8 slots) - 930 mA, 5V DC

Main
range of product
Modicon Premium Automation platform
product or component type
Unity processor
software designation
Unity Pro
Complementary
number of racks
16 4/6/8 slots
8 12 slots
number of slots
128
64
96
discrete I/O processor capacity
1024 I/O
analogue I/O processor capacity
80 I/O
number of application specific channel
<= 24
number of process control channel
<= 10 up to 30 simple loops
integrated connection type
Fipio manager (127 agents) SUB-D 9
Non isolated serial link 2 female mini DIN RS485 19.2 kbit/s
communication module processor capacity
1
4
memory description
Internal RAM (with PCMCIA card) 192 kB data
Internal RAM (with PCMCIA card) 768 kB program
Internal RAM (without PCMCIA card) 192 kB program and data
PCMCIA card 16384 kB additional data storage
maximum size of object areas
64 %KWi constant words located internal data
64 %MWi internal words located internal data
64 kB (DFB and EFB function blocks) unlocated internal data
64 kB (elementary and derived data) unlocated internal data
8132 %Mi located internal bits
application structure
1 fast task
1 master task
64 event tasks
execution time per instruction
0.19 µs Boolean without PCMCIA card
0.25 µs word or fixed-point arithmetic without PCMCIA card
1.75...2.6 µs floating points with PCMCIA card
1.75...2.6 µs floating points without PCMCIA card
0.21 µs Boolean with PCMCIA card
0.42 µs word or fixed-point arithmetic with PCMCIA card
number of instructions per ms
2.53 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card
3.7 Kinst/ms 100 % Boolean with PCMCIA card
3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card
4.76 Kinst/ms 100 % Boolean without PCMCIA card
system overhead
0.3 ms fast task
1 ms master task
marking
CE
local signalling
1 LED green processor running (RUN)
1 LED red activity on Fipio bus (FIP)
1 LED red I/O module or configuration fault (I/O)
1 LED red processor or system fault (ERR)
1 LED yellow activity on TER or AUX terminal port (TER)
current consumption
930 mA 5 V DC
module format
Double
product weight
0.628 kg

Environment
standards
73/23/EEC
89/336/EEC
92/31/EEC
93/68/EEC
CSA C22.2 No 142
IEC 61131-2
UL 508
CSA C22.2 No 213 Class I Division 2 Group A
CSA C22.2 No 213 Class I Division 2 Group B
CSA C22.2 No 213 Class I Division 2 Group C
CSA C22.2 No 213 Class I Division 2 Group D
product certifications
ABS
BV
DNV
GL
LR
RINA
RMRS
ambient air temperature for operation
0...60 °C
ambient air temperature for storage
-25...70 °C
relative humidity
10...95 % without condensation for operation
5...95 % without condensation for storage
operating altitude
0...2000 m
protective treatment
TC
IP degree of protection
IP20
pollution degree
2
