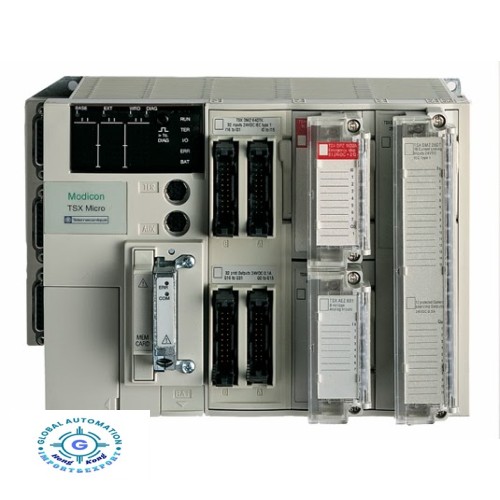

Schneider TSX37211PAK02 TSX Micro 37 21 PLC configurations with Bus CANopen,TSX37211PAK0, Schneider
Schneider TSX37211PAK02 TSX Micro 37 21 PLC configurations with Bus CANopen
| range of product |
Modicon TSX Micro automation platform
|
|
|---|---|---|
| product or component type |
Modular base controller
|
|
| primary voltage |
24 V 19.2...30 V DC
|
|
| input current |
2 mA < 60 A
|
|
| immunity to microbreaks |
< 10 ms
|
| number of slots |
3
|
|
|---|---|---|
| module type |
Screw terminal discrete I/O
|
|
| discrete input number |
16 24 V DC
|
|
| discrete output number |
12 relay
|
|
| integrated connection type |
1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s 1 CANopen CANopen |
|
| realtime clock |
With
|
|
| memory description |
Internal RAM 20 Kwords data
Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage Flash 15 Kwords data |
|
| maximum size of object areas |
256 %Mi
1 %MWi internal words 128 %KWi constant words |
|
| execution time per instruction |
0.13 µs Boolean without PCMCIA card
4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
|
| execution time for 1 Kinstruction |
5.88 100 % Boolean without PCMCIA card
0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
|
| application structure |
1 master task
1 fast task 16 event tasks |
|
| system overhead |
2.3 ms master task
|
|
| protection type |
Overload protection
Short-circuit |
|
| total useful secondary power |
16 W
|
|
| electromagnetic compatibility |
Electrostatic discharge IEC 1000-4-2 level 3
Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2 |
| ambient air temperature for operation |
0...60 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
5...95 % without condensation for operation
10...95 % without condensation for operation |
|
| operating altitude |
0...2000 m
|
|
| width |
341.4 mm
|
|
| height |
151 mm
|
|
| depth |
152 mm
|
|
| product weight |
2.5 kg
|
