Schneider TSX3705028DR1 TSX Micro 37 05/08 PLC configurations,TSX3705028DR, Schneider

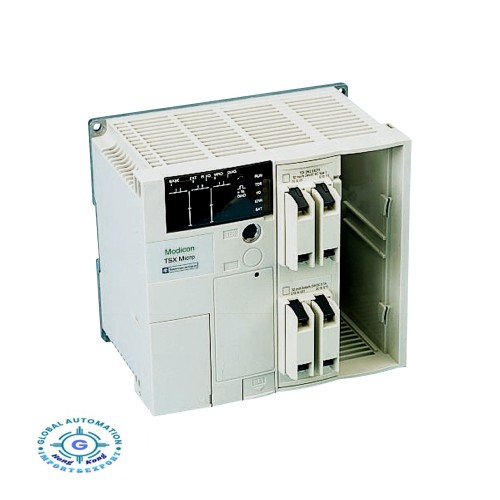

Schneider TSX3705028DR1 TSX Micro 37 05/08 PLC configurations
| range of product |
Modicon TSX Micro automation platform
|
|
|---|---|---|
| product or component type |
Modular base controller
|
|
| primary voltage |
100...240 V 90...264 V AC
|
|
| input current |
2 mA < 60 A
|
|
| immunity to microbreaks |
< 20 ms
|
|
| output current |
0.5 A
|
| number of slots |
2
|
|
|---|---|---|
| module type |
Screw terminal discrete I/O
|
|
| discrete output number |
12 relay
|
|
| integrated connection type |
1 serial link Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s |
|
| memory description |
Flash 12 Kwords data
Internal RAM 11 Kwords data |
|
| maximum size of object areas |
256 %Mi
1 %MWi internal words 128 %KWi constant words |
|
| execution time per instruction |
0.25 µs Boolean without PCMCIA card
4.81 µs arithmetic REAL floating without PCMCIA card |
|
| execution time for 1 Kinstruction |
3.03 100 % Boolean without PCMCIA card
0.25 65 % Boolean and 35 % numerical without PCMCIA card |
|
| application structure |
1 fast task
1 master task 8 event tasks |
|
| system overhead |
1.9 ms master task
|
|
| protection type |
Overload protection
Short-circuit |
|
| network frequency |
50...60 Hz
|
|
| total useful secondary power |
24 W
|
|
| electromagnetic compatibility |
Electrostatic discharge IEC 1000-4-2 level 3
Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2 |
| ambient air temperature for operation |
0...60 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
5...95 % without condensation for operation
10...95 % without condensation for operation |
|
| operating altitude |
0...2000 m
|
|
| width |
187.3 mm
|
|
| height |
151 mm
|
|
| depth |
152 mm
|
|
| product weight |
2.37 kg
|
Schneider TSX3705028DR1 TSX Micro 37 05/08 PLC configurations,TSX3705028DR
- Brand: Schneider
- Product Code: TSX3705028DR1
- Availability: 1000
Tags: TSX3705028DR1
