Schneider TMC2AQ2C Cartridge M221 - 2 analog current outputs - I/O extension,TMC2AQ2C, Schneider

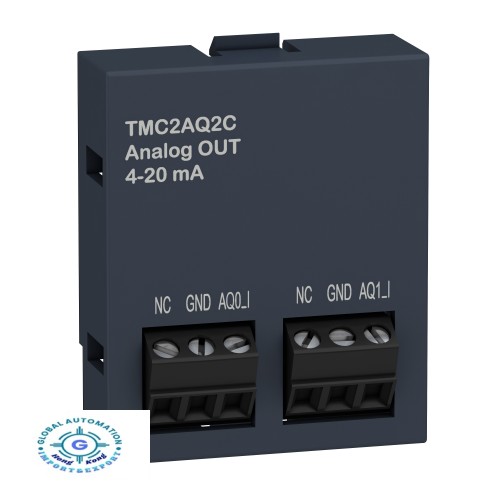

Schneider TMC2AQ2C Cartridge M221 - 2 analog current outputs - I/O extension
| range of product |
Modicon M221
|
|
|---|---|---|
| product or component type |
Analogue output cartridge
|
|
| product compatibility |
Modicon M221C
|
| analogue output number |
2
|
|
|---|---|---|
| analogue output type |
Current (4...20 mA)
|
|
| analogue output resolution |
12 bits
|
|
| LSB value |
3.91 µA current, output range: 4...20 mA
|
|
| load type |
Resistive
|
|
| load impedance ohmic |
<= 500 Ohm
|
|
| conversion time |
20 ms
|
|
| stabilisation time |
40 ms
|
|
| absolute accuracy error |
+/- 1 % of full scale
+/- 0.3 % of full scale 25 °C |
|
| temperature drift |
+/- 0.02 %FS/°C
|
|
| repeat accuracy |
+/- 0.4 %FS
|
|
| non-linearity |
+/- 0.01 %FS
|
|
| cross talk |
<= 1 LSB
|
|
| type of cable |
Twisted shielded pairs cable
|
|
| electrical connection |
2 screw terminal blocks (pitch 3.81 mm) 1.5 mm² 3 for outputs
|
|
| cable distance between devices |
Twisted shielded pairs cable: 30 m for output
|
|
| insulation |
Non-insulated between analogue output and internal logic
|
|
| height |
41 mm
|
|
| depth |
15 mm
|
|
| width |
35 mm
|
|
| product weight |
0.015 kg
|
| immunity to microbreaks |
10 ms
|
|---|
