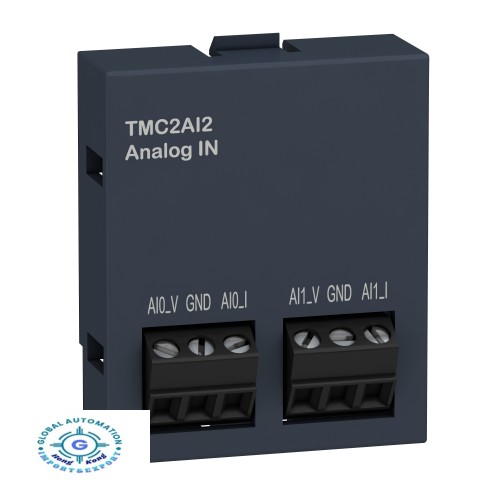

Schneider TMC2AI2 Cartridge M221 - 2 analog inputs - I/O extension

Complementary
analogue input type	Current, input range: 4...20 mA Current, input range: 0...20 mA Voltage, input range: 0...10 V
analogue input resolution	12 bits
LSB value	3.91 µA (current), input range: 4...20 mA 2.44 mV (voltage), input range: 0...10 V 4.88 µA (current), input range: 0...20 mA
conversion time	20 ms
sampling duration	10 ms
absolute accuracy error	+/- 1 % of full scale +/- 0.1 % of full scale 25 °C
temperature drift	+/- 0.02 %FS/°C
repeat accuracy	+/- 0.5 %FS
non-linearity	+/- 0.01 %FS
cross talk	<= 1 LSB
type of cable	Twisted shielded pairs cable
electrical connection	2 screw terminal blocks (pitch 3.81 mm) 1.5 mm² 3 for inputs
cable distance between devices	Twisted shielded pairs cable: 30 m for input
insulation	Non-insulated between analogue input and internal logic
height	41 mm
depth	15 mm
width	35 mm
product weight	0.015 kg
permissible continuous overload	13 V (voltage) 40 mA (current)
input impedance	<= 250 Ohm current >= 1 MOhm voltage

Environment
immunity to microbreaks	10 ms
