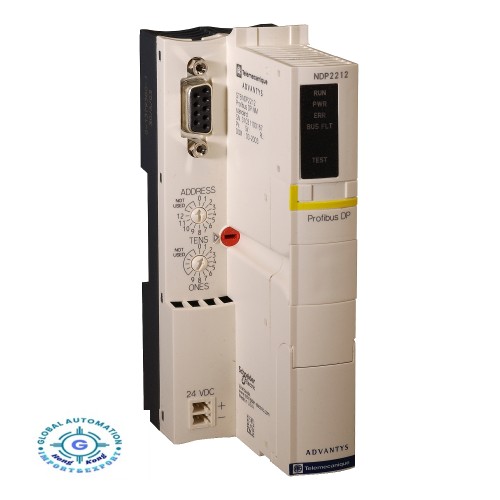

Schneider STBNDP2212 Standard Network Interface Module STB - Profibus DP - 9.6 kbit/s
| range of product |
Modicon STB distributed I/O solution
|
|
|---|---|---|
| product or component type |
Standard Network Interface Module
|
|
| integrated connection type |
Profibus DP conforming to DIN 19245 part 1 and 3 HE-13 (RS232
port)
Profibus DP conforming to DIN 19245 part 1 and 3 8-way female (RS232 port) Profibus DP conforming to DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair (bus) |
|
| number of segments |
1 primary, maximum 6 extensions
|
|
| number of slave |
125
|
|
| transmission rate |
12 Mbit/s for bus length of 0...200 m
12 Mbit/s for bus length of 0...800 m with 3 repeaters 9.6 kbit/s for bus length of 0...1200 m 9.6 kbit/s for bus length of 0...4800 m with 3 repeaters |
|
| structure type |
Industrial field bus DP V.0
|
| number of addressable I/O module |
0...32 per island
|
|
|---|---|---|
| communication service |
Read/write DP slave I/O data
Diagnostics Slave configuration Configuration control |
|
| [Us] rated supply voltage |
24 V DC
|
|
| power supply type |
SELV
|
|
| supply current |
>= 700 mA
|
|
| supply voltage limits |
19.2...30 V
|
|
| input current |
430 mA for supply circuit
|
|
| nominal output current |
1.2 A
0.575 A (60...70 °C) |
|
| output impedance |
<= 0.05 Ohm at 100000 kHz
|
|
| output voltage |
5.25 V DC (tolerance: +/- 0.21 %) for logic bus
|
|
| marking |
CE
|
|
| overvoltage category |
II
|
|
| status LED |
1 LED red for module error (ERR)
1 LED green for island state (RUN) 1 LED green for power supply (PWR) 1 LED yellow for test mode 1 LED green for BUSFLT |
|
| depth |
70 mm
|
|
| height |
40 mm
|
|
| width |
128.3 mm
|
| electromagnetic compatibility |
Immunity to electromagnetic interference conforming to IEC
61131-2
|
|
|---|---|---|
| product certifications |
C-Tick
ATEX Cat 3G CSA UL FM Class 1 Division 2 |
|
| pollution degree |
2 conforming to IEC 60664-1
|
|
| operating altitude |
<= 2000 m
|
|
| IP degree of protection |
IP20 conforming to EN 61131-2 class 1
|
|
| ambient air temperature for operation |
0...60 °C without derating
-25...70 °C with derating factor |
|
| ambient air temperature for storage |
-40...85 °C
|
|
| relative humidity |
95 % at 60 °C without condensation
|
|
| vibration resistance |
+/-0.35 mm (f = 10...58 Hz)
5 gn (f = 58...150 Hz) on 35 x 15 mm symmetrical DIN rail 3 gn (f = 58...150 Hz) on 35 x 7.5 mm symmetrical DIN rail |
|
| shock resistance |
30 gn for 11 ms conforming to IEC 88 reference 2-27
|
