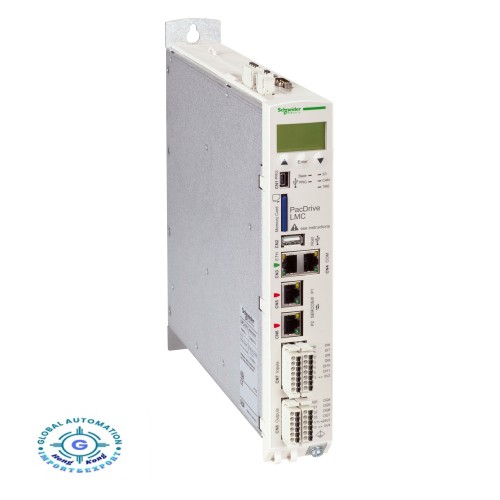

Schneider LMC106CAA10000 Motion controller LMC106 6 axis - Acc kit - Basic
| range of product |
PacDrive 3
|
|
|---|---|---|
| product or component type |
Motion controller
|
| product compatibility |
LMC106
|
|
|---|---|---|
| number of axis |
<= 6
|
|
| discrete input number |
8 digital input conforming to IEC 61131-2 Type 1
4 touch probe input conforming to IEC 61131-2 Type 1 |
|
| discrete input voltage |
- 3...5 V
15...30 V |
|
| discrete input voltage type |
DC
|
|
| discrete input current |
4 mA digital input
|
|
| anti bounce filtering |
Configurable from 100 µs...4.29 s for digital input
Configurable from 100 µs...4.29 s for touch probe input Configurable from 100 µs...4.29 s for interrupt input |
|
| cable distance between devices |
50 m
|
|
| discrete output number |
8 digital output
|
|
| discrete output current |
500 mA for digital output
|
|
| leakage current |
<= 0.5 mA
|
|
| number of I/O expansion module |
1
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| power consumption in W |
30 W
|
|
| memory type |
RAM DDR2 512 MB
NVRAM 128 kB |
|
| programming language |
IL (instruction list)
SFC (sequential function chart) FBD (function block diagram) ST (structured text) CFC (continuous function chart) LD (ladder) |
|
| integrated connection type |
2 Ethernet port, connector RJ45 for protocol Sercos
1 Ethernet port, connector RJ45 for protocol Ethernet 10/100BASE-T, FTP/HTTP 1 Ethernet port, connector RJ45 for master encoder 1 serial link, connector RJ45 for protocol RS232/RS485 1 CAN port, connector SUB-D 9 for protocol CANopen 1 USB port, connector USB type A |
|
| supply |
Power supply 24 V DC
|
|
| width |
44 mm
|
|
| height |
270 mm
|
|
| depth |
222 mm
|
|
| product weight |
2.2 kg
|
| standards |
EN/IEC 61131-2
UL 508 CSA C22.2 No 142 CSA C22.2 No 14 |
|
|---|---|---|
| product certifications |
EAC
cULus CE CSA |
|
| ambient air temperature for operation |
5...55 °C
|
|
| relative humidity |
5...95 % without condensation
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| pollution degree |
2 conforming to IEC 61131-2
|
|
| operating altitude |
0...2000 m
|
|
| vibration resistance |
3.5 mm (f = 5...8.4 Hz)
10 m/s² (f = 8.4...150 Hz) |
|
| shock resistance |
150 m/s² (duration = 6 ms) conforming to EN/IEC 60721-3-3
operation
|
