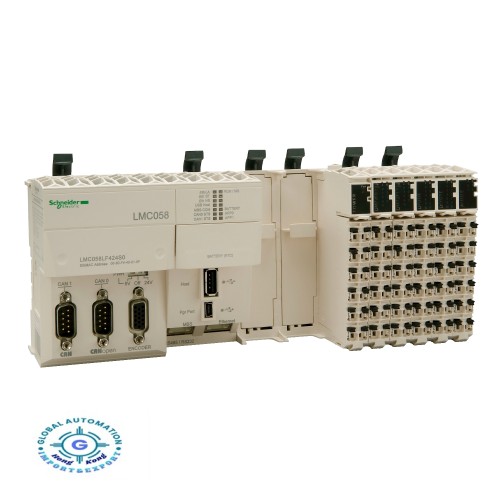

Schneider LMC058LF424 Compact base - 42 + 4 I/O - 24V DC supply - 2 slots for PCI,LMC058LF424, Schneider
Schneider LMC058LF424 Compact base - 42 + 4 I/O - 24V DC supply - 2 slots for PCI
| range of product |
Modicon LMC058
|
|
|---|---|---|
| product or component type |
Motion controller
|
|
| product specific application |
-
|
|
| discrete I/O number |
42
|
|
| battery type |
3 V CR2477M lithium battery
|
| discrete input number |
10 fast input
12 input 4 regular input |
|
|---|---|---|
| discrete input logic |
Sink fast input
Sink regular input Source input |
|
| discrete input voltage |
24 V
|
|
| discrete input voltage type |
DC
|
|
| analogue input number |
4
|
|
| analogue input type |
Current 0...20 mA
Current 4...20 mA Voltage +/- 10 V |
|
| analogue input resolution |
12 bits
|
|
| voltage state 1 guaranteed |
>= 15 V fast input
>= 15 V fast output >= 15 V regular input |
|
| voltage state 0 guaranteed |
<= 5 V fast input
<= 5 V fast output <= 5 V regular input |
|
| discrete input current |
4 mA fast input
4 mA regular input |
|
| input impedance |
6 kOhm fast input
6 kOhm regular input |
|
| configurable filtering time |
0 ms fast input/regular input and fast output
1.5 ms fast input/regular input and fast output 12 ms fast input/regular input and fast output 4 ms fast input/regular input and fast output |
|
| anti bounce filtering |
2 µs...4 ms configurable fast input/regular input and fast
output
|
|
| cable distance between devices |
30 m[Space ]for fast input
|
|
| insulation |
Between channels and internal logic at 500 V AC
Non-insulated between channels |
|
| discrete output number |
12 output
4 fast output |
|
| discrete output logic |
Source
|
|
| discrete output voltage |
24 V DC
|
|
| output voltage limits |
19.2...28.8 V
|
|
| discrete output current |
4 mA fast output
|
|
| [Us] rated supply voltage |
24 V DC for embedded expert modules power
|
|
| supply voltage limits |
20.4...28.8 V
|
|
| [In] rated current |
0.04 A embedded expert modules power
0.3 A main supply 10 A I/O power segment |
|
| peak current |
< 100 kA (duration= <= 70 s) for main supply
<= 25 kA (duration= <= 500 s) for I/O power segment <= 50 kA (duration= <= 150 s) for embedded expert modules power 1.2 A (duration= > 70 s) for main supply |
|
| power consumption in W |
<= 14.14 W
|
|
| execution time per instruction |
22 ns : Boolean
|
|
| memory type |
128 MB flash memory
64 MB RAM memory |
|
| realtime clock |
Without any user calibration < 30 s/month at 25 °C
With user calibration <= 6 s/month |
|
| data backed up |
Variables of type retain and retain persistent with battery
|
|
| battery life |
1.5 yr
|
|
| integrated connection type |
1 CAN port with male SUB-D 9; protocol: CANmotion bus or CANopen
with master method
1 CAN port with male SUB-D 9; protocol: CANopen with master method 1 encoder with female SUB-D 15 1 isolated serial link with female RJ45; protocol: Ethernet Modbus TCP/IP with slave method; physical interface: 10BASE-T/100BASE-TX 1 isolated serial link with female RJ45; protocol: Modbus with master/slave method; transmission frame: RTU/ASCII or character mode ASCII; physical interface: RS232/RS485; transmission rate: 300...115200 bps 1 isolated serial link with mini B USB; transmission rate: 480 Mbit/s 1 isolated serial link with USB type A; transmission rate: 480 Mbit/s 2 free slots PCI |
|
| transmission rate |
10 kbit/s with 5000 m bus; protocol: CANopen
1000 kbit/s with 4 m bus; protocol: CANopen 125 kbit/s with 500 m bus; protocol: CANopen 20 kbit/s with 2500 m bus; protocol: CANopen 250 kbit/s with 250 m bus; protocol: CANopen 50 kbit/s with 1000 m bus; protocol: CANopen 500 kbit/s with 100 m bus; protocol: CANopen 800 kbit/s with 25 m bus; protocol: CANopen |
|
| counting input number |
8 at 200 kHz
|
|
| local signalling |
1 LED green/red for CAN1 STS
1 LED green/yellow for MBS COM 1 LED per channel for APP0 1 LED red for APP1 1 LED for CAN0 STS |
|
| marking |
CE
|
|
| mounting support |
Symmetrical DIN rail
|
|
| width |
237.5 mm
|
|
| height |
99 mm
|
|
| depth |
85 mm
|
|
| product weight |
0.77 kg
|
| standards |
UL 508
CSA C22.2 No 142 CSA C22.2 No 213 IEC 61131-2 |
|
|---|---|---|
| product certifications |
CSA
C-Tick cULus GOST-R |
|
| ambient air temperature for operation |
0...50 °C vertical installation
0...55 °C without horizontal installation 0...60 °C with horizontal installation |
|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
5...95 % without condensation
|
|
| IP degree of protection |
IP20 conforming to IEC 61131-2
|
|
| pollution degree |
2 conforming to IEC 60664
|
|
| operating altitude |
0...2000 m
|
|
| storage altitude |
0...3000 m
|
|
| vibration resistance |
1 gn at 8.4...150 Hz with DIN rail mounting
3.5 mm at 5...8.4 Hz with DIN rail mounting |
|
| shock resistance |
15 gn for 11 ms
|
|
| electromagnetic compatibility |
Conducted and radiated emissions conforming to CISPR 11
Conducted RF disturbances conforming to EN/IEC 61000-4-6 Electrostatic discharge immunity test (test level: 8 kV) - on contact conforming to EN/IEC 61000-4-2 Electrostatic discharge immunity test (test level: 4 kV) - on air conforming to EN/IEC 61000-4-2 Susceptibility to electromagnetic fields (test level: 1 V/m) - 2...2.7 GHz conforming to EN/IEC 61000-4-3 Susceptibility to electromagnetic fields (test level: 10 V/m) - 80...2000 MHz conforming to EN/IEC 61000-4-3 Electrical fast transient/burst immunity test (test level: 1 kV) - I/O conforming to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test (test level: 1 kV) - shielded cable conforming to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test (test level: 2 kV) - power lines conforming to EN/IEC 61000-4-4 Surge immunity test (test level: 0.5 kV) - differential mode conforming to EN/IEC 61000-4-5 Surge immunity test (test level: 1 kV) - common mode conforming to EN/IEC 61000-4-5 |
|
| disturbance radiated/conducted |
CISPR 11
|
