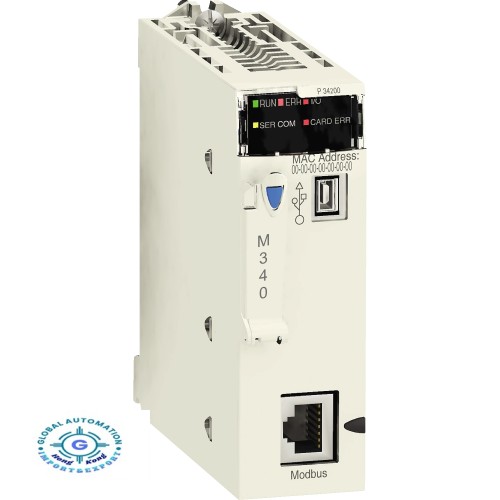

Schneider BMXP342000 Processor module M340 - max 1024 discrete + 256 analog I/O - Modbus
| range of product |
Modicon M340 automation platform
|
|
|---|---|---|
| product or component type |
Processor module
|
|
| number of racks |
1
|
|
| number of slots |
11
|
|
| discrete I/O processor capacity |
1024 I/O single-rack configuration
|
|
| analogue I/O processor capacity |
256 I/O multi-rack configuration
66 I/O single-rack configuration |
|
| number of application specific channel |
36
|
|
| monitoring |
Diagnostic counters Modbus
Event counters Modbus |
| control channels |
Programmable loops
|
|
|---|---|---|
| integrated connection type |
USB port 12 Mbit/s
Non isolated serial link RJ45 character mode asynchronous in baseband RS232C full duplex 0.3...19.2 kbit/s 2 twisted shielded pairs Non isolated serial link RJ45 character mode asynchronous in baseband RS485 half duplex 0.3...19.2 kbit/s 1 twisted shielded pair Non isolated serial link RJ45 Modbus master/slave RTU/ASCII asynchronous in baseband RS232C half duplex 0.3...19.2 kbit/s 1 twisted shielded pair Non isolated serial link RJ45 Modbus master/slave RTU/ASCII asynchronous in baseband RS485 half duplex 0.3...19.2 kbit/s 1 twisted shielded pair |
|
| communication module processor capacity |
2 Ethernet communication module
4 AS-Interface module |
|
| number of devices per segment |
0...32 character mode
0...32 Modbus |
|
| number of devices |
2 point-to-point character mode
2 point-to-point Modbus |
|
| bus length |
0...10 m serial link non isolated character mode segment
0...10 m serial link non isolated Modbus segment 0...1000 m serial link isolated character mode segment 0...1000 m serial link isolated Modbus segment 0...15 m character mode point-to-point 0...15 m Modbus point-to-point |
|
| tap links length |
<= 15 m serial link non isolated character mode segment
<= 15 m serial link non isolated Modbus segment <= 40 m serial link isolated character mode segment <= 40 m serial link isolated Modbus segment |
|
| number of addresses |
0...248 character mode
0...248 Modbus |
|
| requests |
1 K data bytes per request character mode
252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus |
|
| control parameter |
One CRC on each frame (RTU) Modbus
One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus |
|
| memory description |
2048 kB internal RAM
128 kB internal RAM for data 1792 kB internal RAM for program constants and symbols Supplied memory card (BMXRMS008MP) for backup of programs, constants, symbols and data |
|
| maximum size of object areas |
128 kB unlocated internal data
16250 %Mi located internal bits 32464 %MWi internal words located internal data 32760 %KWi constant words located internal data |
|
| default size of object areas |
128 %KWi constant words located internal data
256 %Mi located internal bits 512 %MWi internal words located internal data |
|
| application structure |
No auxiliary task
1 periodic fast task 1 cyclic/periodic master task 32 event tasks |
|
| execution time per instruction |
0.18 µs Boolean
0.26 µs double-length words 0.38 µs single-length words 1.74 µs floating points |
|
| number of instructions per ms |
4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
5.4 Kinst/ms 100 % Boolean |
|
| system overhead |
0.2 ms fast task
1.05 ms master task |
|
| current consumption |
72 mA 24 V DC
|
|
| supply |
Internal power supply via rack
|
|
| marking |
CE
|
|
| status LED |
1 LED green processor running (RUN)
1 LED red I/O module fault (I/O) 1 LED red memory card fault (CARD ERR) 1 LED red processor or system fault (ERR) 1 LED yellow activity on Modbus (SER COM) |
|
| product weight |
0.2 kg
|
| ambient air temperature for operation |
0...60 °C
|
|
|---|---|---|
| relative humidity |
10...95 % without condensation
|
|
| IP degree of protection |
IP20
|
|
| protective treatment |
TC
|
|
| directives |
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive 2014/35/EU - low voltage directive |
|
| standards |
EN 61131-2
EN 61010-2-201 EN 61000-6-2 EN 61000-6-4 |
