Schneider BMXNOC0401 Ethernet module M340 - 4 x RJ45 10/100,BMXNOC0401, Schneider

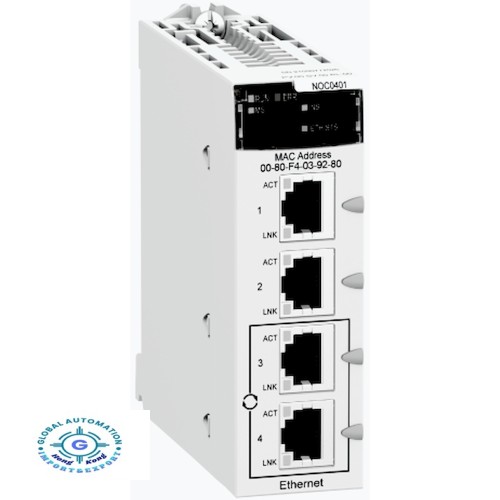

Schneider BMXNOC0401 Ethernet module M340 - 4 x RJ45 10/100
| range of product |
Modicon M340 automation platform
|
|
|---|---|---|
| product or component type |
Ethernet TCP/IP network module
|
|
| concept |
Transparent Ready
|
|
| integrated connection type |
Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready
class B30
|
|
| protective treatment |
TC
|
| communication service |
Bandwidth management
FDR server SNMP network administrator Data Editor (via PC terminal) Rack Viewer Modbus TCP I/O Scanner and Messaging Ethernet/IP I/O Scanner and Messaging Embedded 4-port switch RSTP support Port mirroring |
|
|---|---|---|
| port Ethernet |
10BASE-T/100BASE-TX
|
|
| memory usage |
Application saving
Activating the standard web server |
|
| supply |
Internal power supply via rack
|
|
| local signalling |
1 LED green processor running (RUN)
1 LED red processor or system fault (ERR) 1 LED amber status of Ethernet network (ETH STS) 1 LED green/red MS (Module Status) 1 LED green/red NS (Network Status) |
|
| control type |
Processor or system fault (ERR)
|
|
| current consumption |
555 mA at 3.3 V DC
|
|
| module format |
Standard
|
|
| product weight |
0.2 kg
|
| ambient air temperature for operation |
0...60 °C
|
|
|---|---|---|
| relative humidity |
10...95 % without condensation
|
|
| IP degree of protection |
IP20
|
|
| marking |
CE
|
|
| directives |
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
|
| product certifications |
UL 508
ODVA |
|
| standards |
EN 61000-6-2
EN 61000-6-4 EN 61131-2 EN 61010-2-201 |
Schneider BMXNOC0401 Ethernet module M340 - 4 x RJ45 10/100,BMXNOC0401
- Brand: Schneider
- Product Code: BMXNOC0401
- Availability: 1000
Tags: BMXNOC0401
