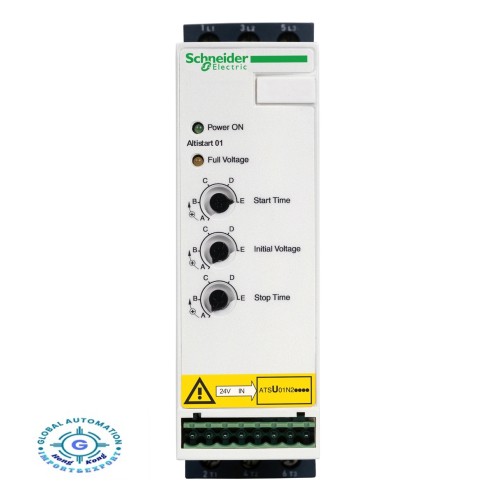

Schneider ATSU01N232LT Soft starter for asynchronous motor - ATSU01 - 32 A - 200..480V - 7.5..15 KW

Main
range of product
Altistart U01 and TeSys U
product or component type
Soft starter
product destination
Asynchronous motors
product specific application
Simple machine
device short name
ATSU01
network number of phases
3 phases
[Us] rated supply voltage
200...480 V - 10...10 %
motor power kW
15 kW 3 phases 400 V
7.5 kW 3 phases 230 V
motor power hp
10 hp 3 phases 230 V
20 hp 3 phases 460 V
IcL starter rating
32 A
utilisation category
AC-53B EN/IEC 60947-4-2
current consumption
100 mA
type of start
Start with voltage ramp
power dissipation in W
2.5 W at full load and at end of starting
322.5 W in transient state
Complementary
assembly style
With heat sink
function available
Integrated bypass
supply voltage limits
180...528 V
supply frequency
50...60 Hz - 5...5 %
network frequency
47.5...63 Hz
output voltage
<= power supply voltage
[Uc] control circuit voltage
24 V DC +/- 10 %
starting time
1 s 50
10 s 5
5 s 10
Adjustable from 1 to 10 s
deceleration time symb
Adjustable from 1 to 10 s
starting torque
30...80 % of starting torque of motor connected directly on the line supply
discrete input type
Logic LI1, LI2, BOOST stop, run and boost on start-up functions <= 8 mA 27 kOhm
discrete input voltage
24...40 V
input output isolation
Galvanic between power and control
discrete input logic
Positive LI1, LI2, BOOST < 5 V and <= 0.2 mA > 13 V >= 0.5 mA
discrete output current
2 A DC-13
3 A AC-15
discrete output type
Open collector logic LO1 end of starting signal
Relay outputs R1A, R1C NO
discrete output voltage
24 V 6...30 V open collector logic
minimum switching current
10 mA 6 V DC relay outputs
maximum switching current
2 A 30 V DC inductive cos phi = 0.5 20 ms relay outputs
2 A 250 V AC AC-15 inductive cos phi = 0.5 20 ms relay outputs
maximum switching voltage
440 V relay outputs
display type
1 LED green starter powered up
1 LED yellow nominal voltage reached
tightening torque
1.9...2.5 N.m
0.5 N.m
electrical connection
4 mm screw clamp terminal rigid 1 1...10 mm² AWG 8 power circuit
Screw connector rigid 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal rigid 2 1...6 mm² AWG 10 power circuit
Screw connector rigid 2 0.5...1 mm² AWG 17 control circuit
Screw connector flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit
4 mm screw clamp terminal flexible without cable end 1 1.5...10 mm² AWG 8 power circuit
Screw connector flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal flexible with cable end 2 1...6 mm² AWG 10 power circuit
4 mm screw clamp terminal flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
Screw connector flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit
marking
CE
operating position
Vertical +/- 10 degree
height
314 mm
width
45 mm
depth
170 mm
product weight
0.49 kg
Motor power range AC-3
7...11 kW at 200...240 V 3 phases
15...25 kW at 380...440 V 3 phases
motor starter type
Soft starter

Environment
electromagnetic compatibility
Damped oscillating waves level 3 IEC 61000-4-12
Electrostatic discharge level 3 IEC 61000-4-2
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/current impulse level 3 IEC 61000-4-5
Conducted and radiated emissions level B CISPR 11
Conducted and radiated emissions level B IEC 60947-4-2
EMC immunity EN 50082-2
Harmonics IEC 1000-3-2
Harmonics IEC 1000-3-4
Conducted and radiated emissions level 3 IEC 61000-4-6
Immunity to conducted interference caused by radio-electrical fields IEC 61000-4-11
EMC immunity EN 50082-1
standards
EN/IEC 60947-4-2
product certifications
UL
C-Tick
CSA
CCC
IP degree of protection
IP20
pollution degree
2 EN/IEC 60947-4-2
vibration resistance
1.5 mm peak to peak 3...13 Hz EN/IEC 60068-2-6
1 gn 13...150 Hz EN/IEC 60068-2-6
shock resistance
15 gn 11 ms EN/IEC 60068-2-27
relative humidity
5...95 % without condensation or dripping water EN/IEC 60068-2-3
ambient air temperature for operation
-10...40 °C without derating
40...50 °C with current derating of 2 % per °C
ambient air temperature for storage
-25...70 °C EN/IEC 60947-4-2
operating altitude
<= 1000 m without derating
> 1000 m with current derating of 2.2 % per additional 100 m
