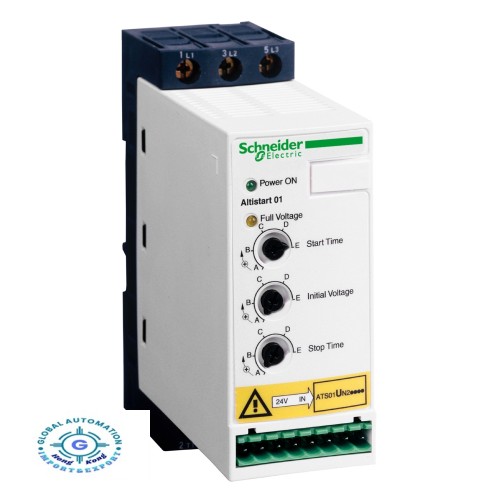

Schneider ATS01N212QN Soft starter for asynchronous motor - ATS01 - 12 A - 380..415V - 5.5 KW

Main
range of product
Altistart 01
product or component type
Soft starter
product destination
Asynchronous motors
product specific application
Simple machine
device short name
ATS01
network number of phases
3 phases
[Us] rated supply voltage
380...415 V - 10...10 %
motor power kW
5.5 kW 3 phases 380...415 V
IcL starter rating
12 A
utilisation category
AC-53B EN/IEC 60947-4-2
current consumption
60 A at nominal load
type of start
Start with voltage ramp
power dissipation in W
124 W in transient state
4 W at full load and at end of starting

Complementary
assembly style
With heat sink
function available
Integrated bypass
supply voltage limits
342...456 V
supply frequency
50...60 Hz - 5...5 %
network frequency
47.5...63 Hz
output voltage
<= power supply voltage
[Uc] control circuit voltage
Built into the starter
starting time
Adjustable from 1 to 10 s
deceleration time symb
Adjustable from 1 to 10 s
starting torque
30...80 % of starting torque of motor connected directly on the line supply
discrete input type
Logic LI1, LI2, BOOST stop, run and boost on start-up functions <= 8 mA 27 kOhm
discrete input voltage
24...40 V
discrete input logic
Positive LI1, LI2, BOOST < 5 V and <= 0.2 mA > 13 V >= 0.5 mA
discrete output current
2 A DC-13
3 A AC-15
discrete output type
Open collector logic LO1 end of starting signal
Relay outputs R1A, R1C NO
discrete output voltage
24 V 6...30 V open collector logic
minimum switching current
10 mA 6 V DC relay outputs
maximum switching current
2 A 250 V AC inductive cos phi = 0.5 20 ms relay outputs
2 A 30 V DC inductive cos phi = 0.5 20 ms relay outputs
display type
1 LED green starter powered up
1 LED yellow nominal voltage reached
tightening torque
1.9...2.5 N.m
0.5 N.m
electrical connection
4 mm screw clamp terminal rigid 1 1...10 mm² AWG 8 power circuit
Screw connector rigid 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal rigid 2 1...6 mm² AWG 10 power circuit
Screw connector rigid 2 0.5...1 mm² AWG 17 control circuit
Screw connector flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit
4 mm screw clamp terminal flexible without cable end 1 1.5...10 mm² AWG 8 power circuit
Screw connector flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal flexible with cable end 2 1...6 mm² AWG 10 power circuit
4 mm screw clamp terminal flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
Screw connector flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit
marking
CE
operating position
Vertical +/- 10 degree
height
124 mm
width
45 mm
depth
131 mm
product weight
0.42 kg
compatibility code
ATS01N2
Motor power range AC-3
4...6 kW at 380...440 V 3 phases
motor starter type
Soft starter
