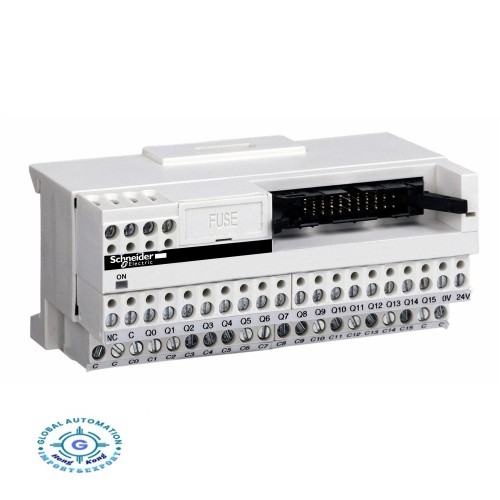

Schneider ABE7E16EPN20 Connection sub-base ABE7 - for Twido extension - 16 inputs,ABE7E16EPN20, Schneider
Schneider ABE7E16EPN20 Connection sub-base ABE7 - for Twido extension - 16 inputs
| range of product |
Advantys Telefast ABE7
|
|
|---|---|---|
| product or component type |
Passive discrete I/O sub-base
|
|
| [Us] rated supply voltage |
24 V DC (controller side)
24 V DC (sensor/controller side) |
|
| number of channels |
16
|
|
| number of terminal per channel |
2
|
|
| connections - terminals |
Screw type terminals, clamping capacity: 1 x 0.09...1 x 1.5 mm²
AWG 28...AWG 16 flexible with cable end
Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12 solid Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14 flexible without cable end Screw type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20 flexible with cable end Screw type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16 solid |
|
| connector destination |
Twido programmable controller
|
| supply voltage limits |
19...30 V DC (controller side) conforming to IEC 61131-2
20.4...26.4 V DC (sensor/controller side) conforming to IEC 61131-2 |
|
|---|---|---|
| discrete input number |
16
|
|
| discrete input logic |
Sink
|
|
| discrete output voltage |
24 V
|
|
| discrete output voltage type |
DC
|
|
| product compatibility |
TWDDDI16DK
TWDDDI32DK |
|
| status LED |
1 LED for power ON
|
|
| polarity distribution |
1 common/16 channels for input
|
|
| short-circuit protection |
2 A internal fuse, 5 x 20 mm, fast blow (controller side)
|
|
| connector type |
HE-10
|
|
| pin number |
20 pins
|
|
| fixing mode |
By clips on 35 mm symmetrical DIN rail conforming to IEC 60715
By screws |
|
| supply current |
<= 2 A
|
|
| switched current |
15 mA for input circuit
|
|
| voltage drop on power supply fuse |
0.3 V
|
|
| [Ui] rated insulation voltage |
2000 V between terminals/mounting rails
|
|
| overvoltage category |
II conforming to IEC 60664-1
|
|
| tightening torque |
0.6 N.m (with flat Ø 3.5 mm)
|
|
| product weight |
0.43 kg
|
| standards |
IEC 61131-2 Type 1
|
|
|---|---|---|
| product certifications |
CSA
UL |
|
| IP degree of protection |
IP2x conforming to IEC 60529
|
|
| resistance to incandescent wire |
750 °C conforming to IEC 60695-2-11
|
|
| shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
| vibration resistance |
2 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
|
|
| resistance to electrostatic discharge |
4 kV (contact) conforming to IEC 61000-4-2 level 3
8 kV (air) conforming to IEC 61000-4-2 level 3 |
|
| resistance to radiated fields |
10 V/m (80000000...2000000000 Hz) conforming to IEC 61000-4-3
level 3
|
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4 level 3
|
|
| ambient air temperature for operation |
-5...60 °C conforming to IEC 61131-2
|
|
| ambient air temperature for storage |
-40...80 °C conforming to IEC 61131-2
|
|
| pollution degree |
2 conforming to IEC 60664-1
|
Schneider ABE7E16EPN20 Connection sub-base ABE7 - for Twido extension - 16 inputs,ABE7E16EPN20
- Brand: Schneider
- Product Code: ABE7E16EPN20
- Availability: 1000
Tags: ABE7E16EPN20
