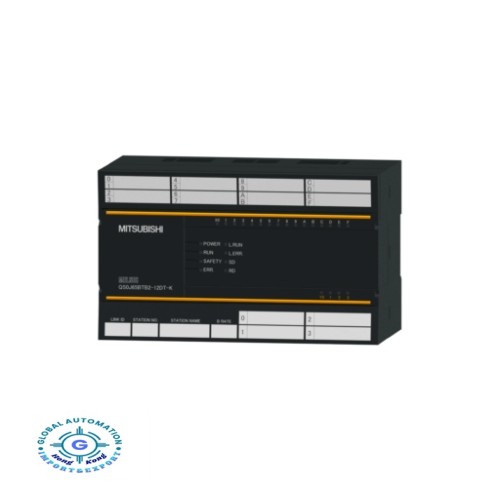

Mitsubishi QS0J65BTB2-12DT PLC QS Safety CC-Link Remote I/O Module,QS0J65BTB2-1, Mitsubishi
Mitsubishi QS0J65BTB2-12DT PLC QS Safety CC-Link Remote I/O Module; 8 Safety Inputs; 4 Safety Outputs
DIGITAL I/O MODULE
| Type | CC-LINK REMOTE I/O |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 4 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,14 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 145 |
| Height (mm) | 98 |
| Depth (mm) | 85 |
| Weight (kg) | 0,67 |
ORDER CODES
| European Order Code | 203210 |
| Global Order Code | 1WH500 |
CLASSIFICATION DATA
| Product hierarchy | IAD50704 |
| Class Description | FA-MOD PLC: Digital I/O Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | A |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 1.005 KG |
| Volume | 4.86 CDM |
| Length | 22,5 CM |
| Width | 16 CM |
| Height | 13,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi QS0J65BTB2-12DT PLC QS Safety CC-Link Remote I/O Module,QS0J65BTB2-1
- Brand: Mitsubishi
- Product Code: QS0J65BTB2-12DT
- Availability: 1000
Tags: QS0J65BTB2-12DT
